DORMER S6378.0 Carbide Cutters

Product Code: S6378.0

$117.83$107.12 Ex. GST

Product Code: S6378.0 SKU S6378.0 Categories , ,
DORMER S6378.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

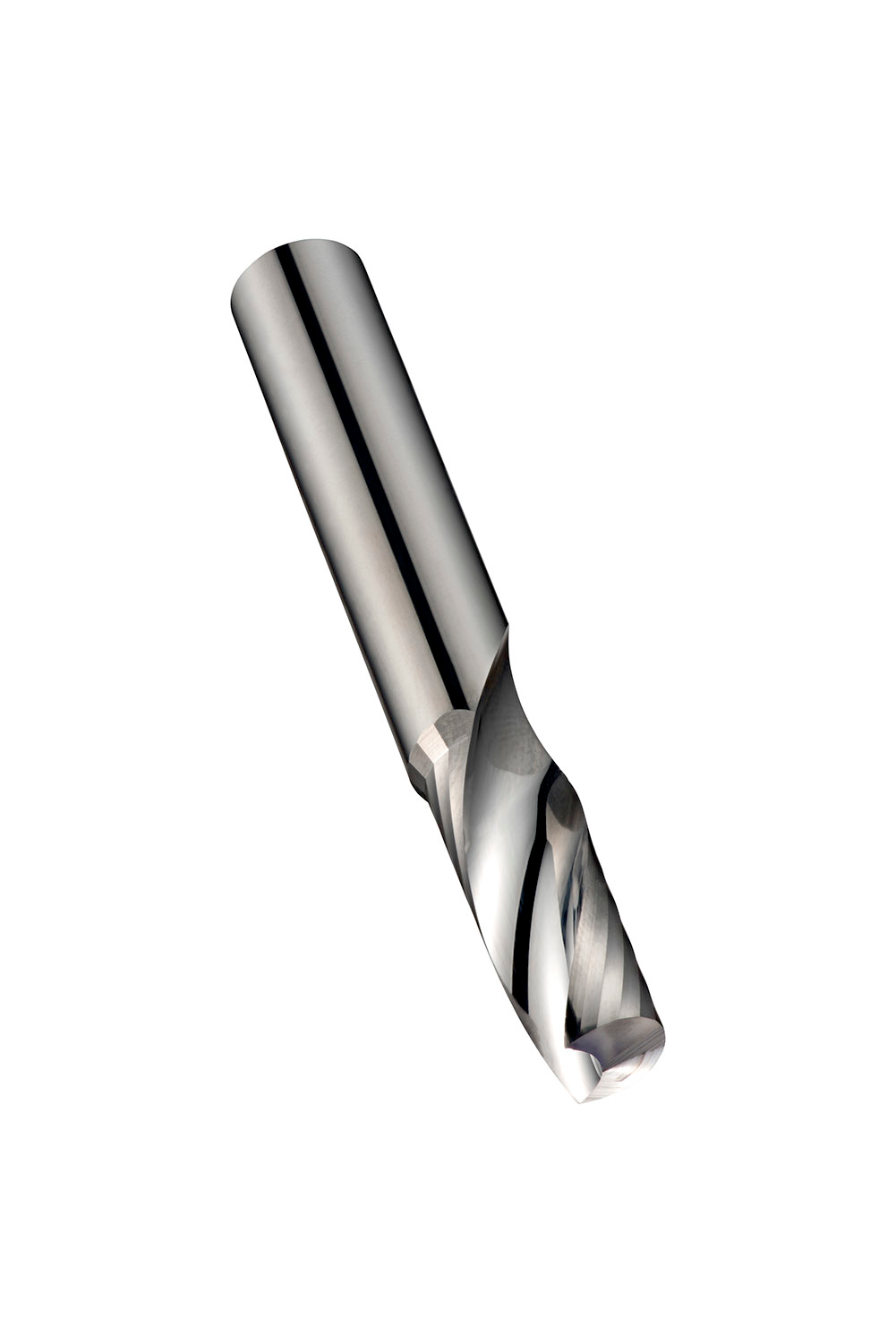

Short series end mill with 1 flute, diameter 8mm with 22mm length of cut and 63mm overall length, according to DORMER standard with a 8mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals

Additional information

Weight 0.1144 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684269
Product number (SAP): 86022012
Ordering code ANSI: S6378.0
Gross weight – grams: 42.6
Cutting diameter – millimeter (DC): 8 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 63 mm
Flute count (NOF): 1
Radial rake angle (GAMF): 20
With Neck: Yes
ISO: S6378.0

Brand

DORMER
