DORMER S63816.3 Carbide Cutters

Product Code: S63816.3

$469.06$426.42 Ex. GST

Product Code: S63816.3 SKU S63816.3 Categories , ,
DORMER S63816.3 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

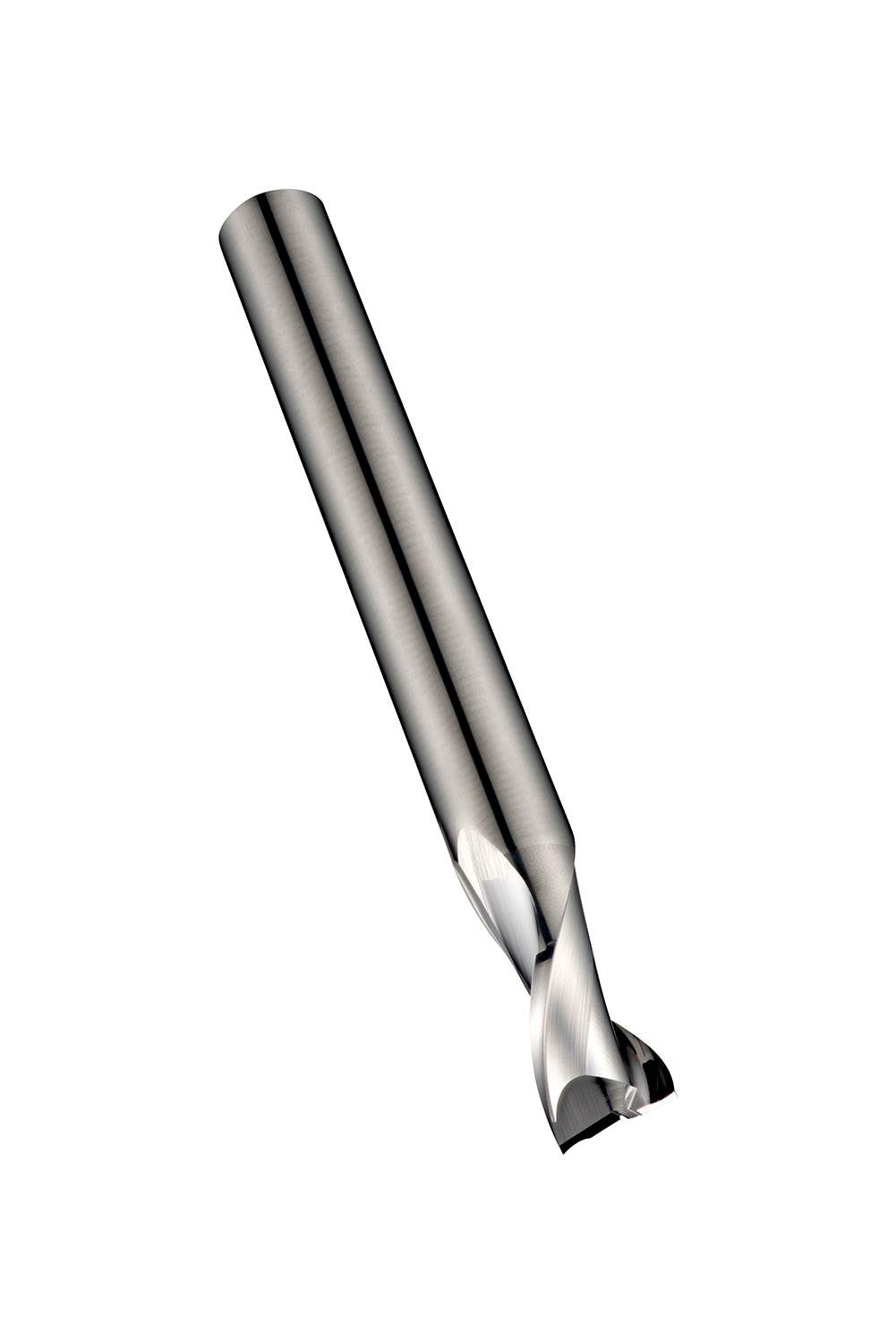

Extra short series end mill with 2 flutes, diameter 16.3mm with 20mm length of cut, 125mm overall length and 0.1mm corner radii, according to DORMER standard with a 16mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling and slot milling in non-ferrous metals

Additional information

Weight 0.4554 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684337
Product number (SAP): 86022019
Ordering code ANSI: S63816.3
Gross weight – grams: 331.1
Cutting diameter – millimeter (DC): 16.3 mm
Corner radius – millimeter (RE): 0.1 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 20 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 20
With Neck: Yes
ISO: S63816.3

Brand

DORMER
