DORMER S6501.0 Carbide Cutters

Product Code: S6501.0

$65.71$59.74 Ex. GST

Product Code: S6501.0 SKU S6501.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

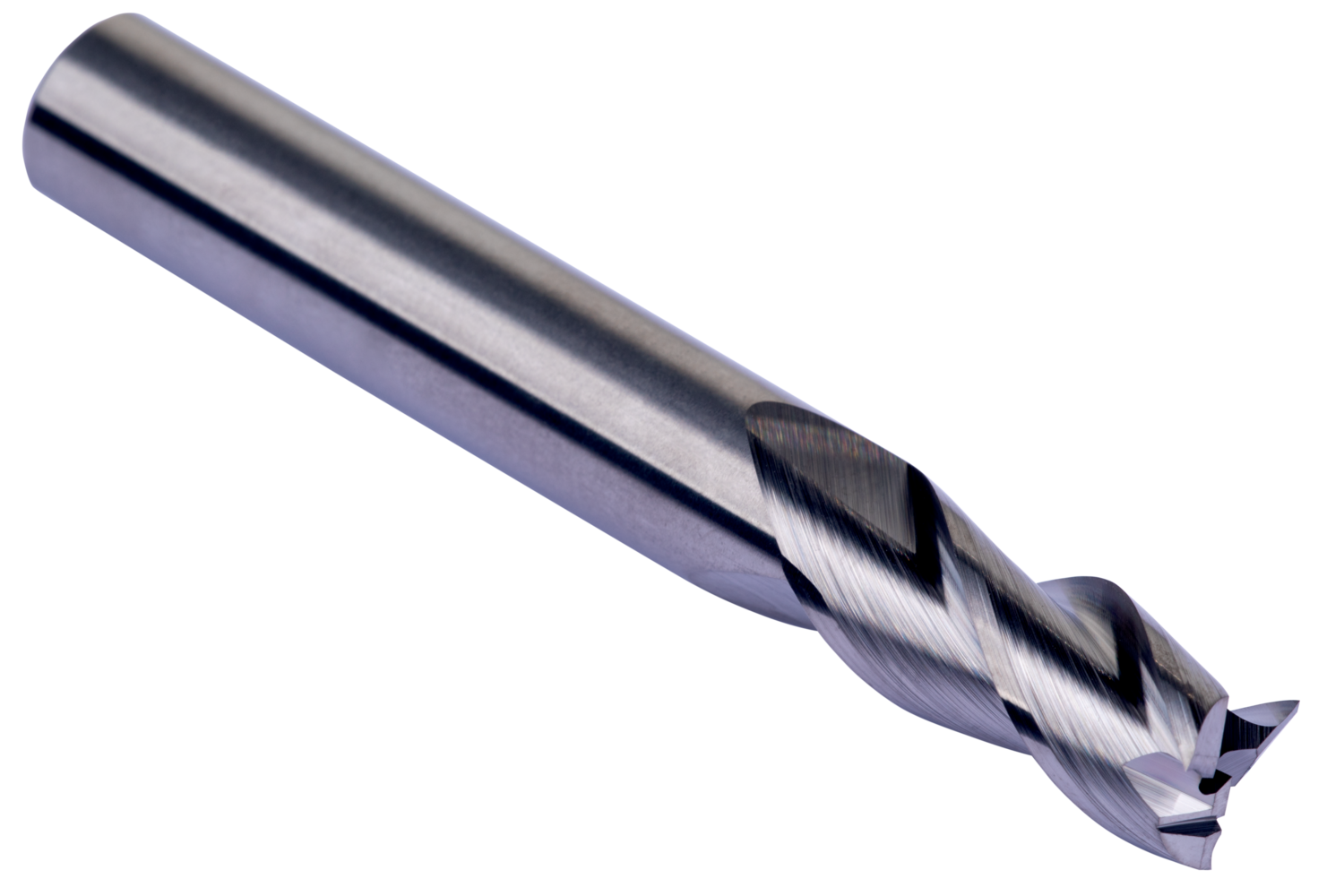

Short series End mill with 3 flutes, diameter 1mm with 3mm length of cut and 40mm overall length, according to DORMER standard with a 4mm plain shank, solid carbide with bright finish, 40° helix with differential pitch and 13° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

Additional information

Weight 0.0638 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950012
Product number (SAP): 86038219
Ordering code ANSI: S6501.0
Gross weight – grams: 13.9
Cutting diameter – millimeter (DC): 1 mm
Connection diameter – millimeter (DCON MS): 4 mm
Depth of cut maximum – millimeter (APMX): 3 mm
Overall length – millimeter (OAL): 40 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 13
ISO: S6501.0

Brand

DORMER
