DORMER S65010.0 Carbide Cutters

Product Code: S65010.0

$131.43$119.48 Ex. GST

Product Code: S65010.0 SKU S65010.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

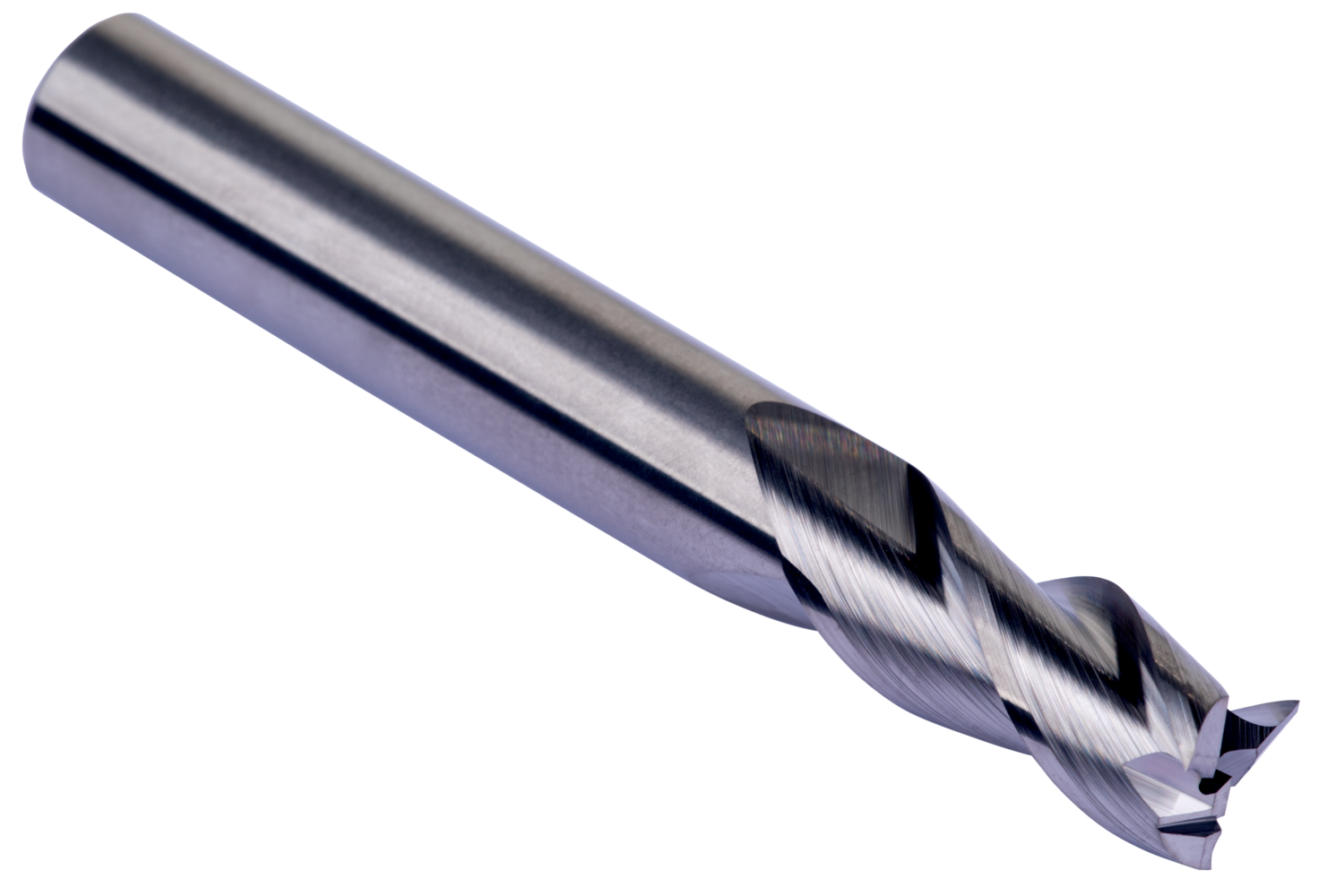

Short series End mill with 3 flutes, diameter 10mm with 22mm length of cut and 70mm overall length, according to DORMER standard with a 10mm plain shank, solid carbide with bright finish, 40° helix with differential pitch and 13° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

Additional information

Weight 0.1276 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950128
Product number (SAP): 86038230
Ordering code ANSI: S65010.0
Gross weight – grams: 74
Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 70 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 13
ISO: S65010.0

Brand

DORMER
