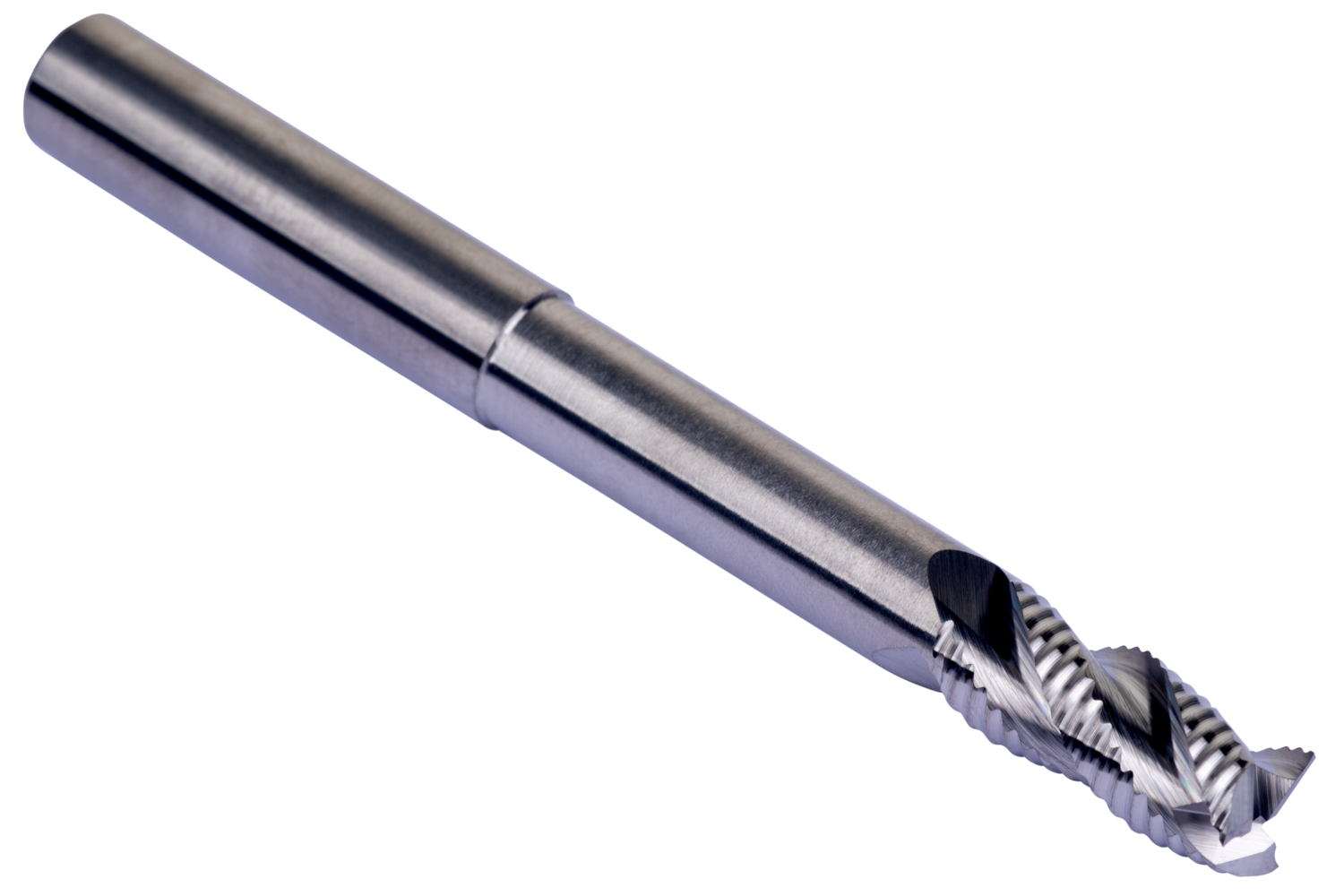

DORMER S65416.0 Carbide Cutters

Product Code: S65416.0

$492.86$448.05 Ex. GST

Product Code: S65416.0 SKU S65416.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series Roughing end mill with 3 flutes, diameter 16mm with 32mm length of cut, 125mm overall length, 75mm reach with neck relief and 0.16mm corner radii, according to DORMER standard with a 16mm plain shank, solid carbide with bright finish, 40° helix and 15° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

Additional information

Weight 0.4785 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950326
Product number (SAP): 86038250
Ordering code ANSI: S65416.0
Gross weight – grams: 319.8
Cutting diameter – millimeter (DC): 16 mm
Corner radius – millimeter (RE): 0.16 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 3
Usable Length – millimeter (LU): 75 mm
Neck diameter – millimeter (DN): 15 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: S65416.0

Brand

DORMER
