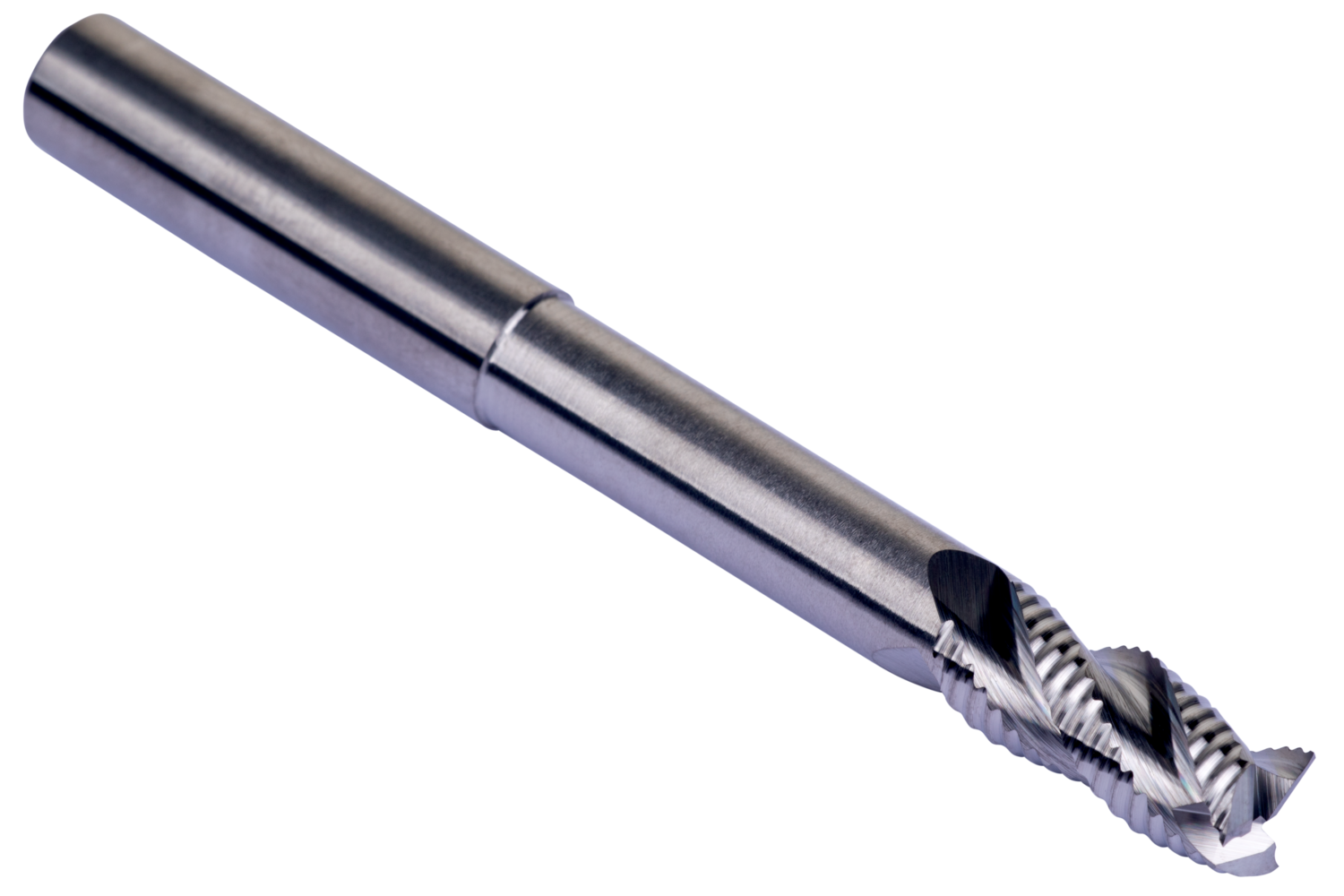

DORMER S65420.0 Carbide Cutters

Product Code: S65420.0

$763.64$694.22 Ex. GST

Product Code: S65420.0 SKU S65420.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series Roughing end mill with 3 flutes, diameter 20mm with 40mm length of cut, 150mm overall length, 100mm reach with neck relief and 0.2mm corner radii, according to DORMER standard with a 20mm plain shank, solid carbide with bright finish, 40° helix and 15° rake angle for shoulder milling, slot milling and helical milling in non-ferrous metals

Additional information

Weight 0.7414 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950333
Product number (SAP): 86038251
Ordering code ANSI: S65420.0
Gross weight – grams: 593.2
Cutting diameter – millimeter (DC): 20 mm
Corner radius – millimeter (RE): 0.2 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 40 mm
Overall length – millimeter (OAL): 150 mm
Flute count (NOF): 3
Usable Length – millimeter (LU): 100 mm
Neck diameter – millimeter (DN): 19 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: S65420.0

Brand

DORMER
