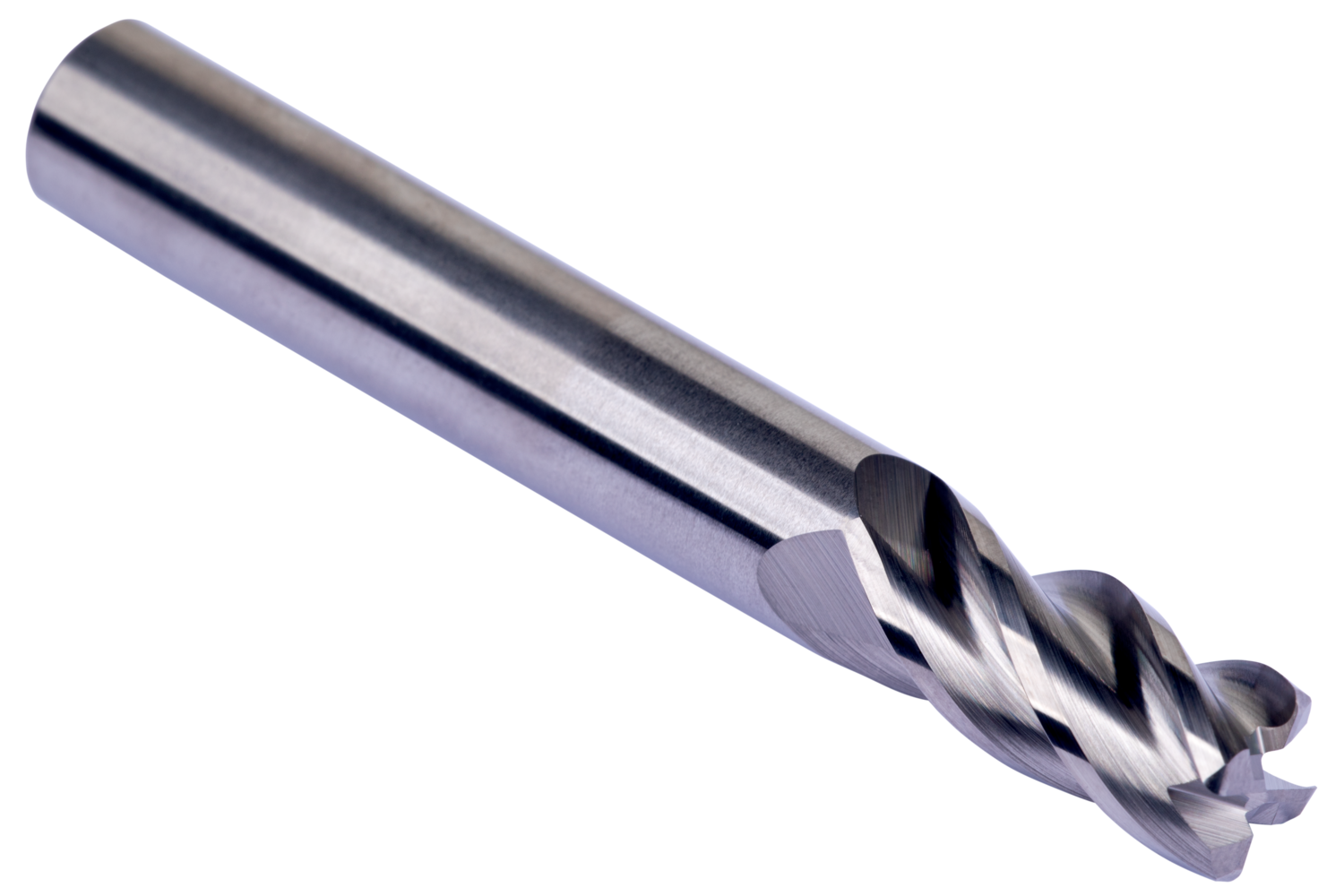

DORMER S66216.0XR3.0 Carbide Cutters

Product Code: S66216.0XR3.0

$347.83$316.21 Ex. GST

Product Code: S66216.0XR3.0 SKU S66216.0XR3.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series Corner radius end mill with 4 flutes, diameter 16mm with 32mm length of cut, 92mm overall length and 3mm corner radii, according to DORMER standard with a 16mm plain shank, solid carbide with bright finish, 40° helix and 10° rake angle for shoulder milling, plunging, ramping and helical milling in non-ferrous metals

Additional information

Weight 0.3377 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950548
Product number (SAP): 86038272
Ordering code ANSI: S66216.0XR3.0
Gross weight – grams: 229.6
Cutting diameter – millimeter (DC): 16 mm
Corner radius – millimeter (RE): 3 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 92 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S66216.0XR3.0

Brand

DORMER
