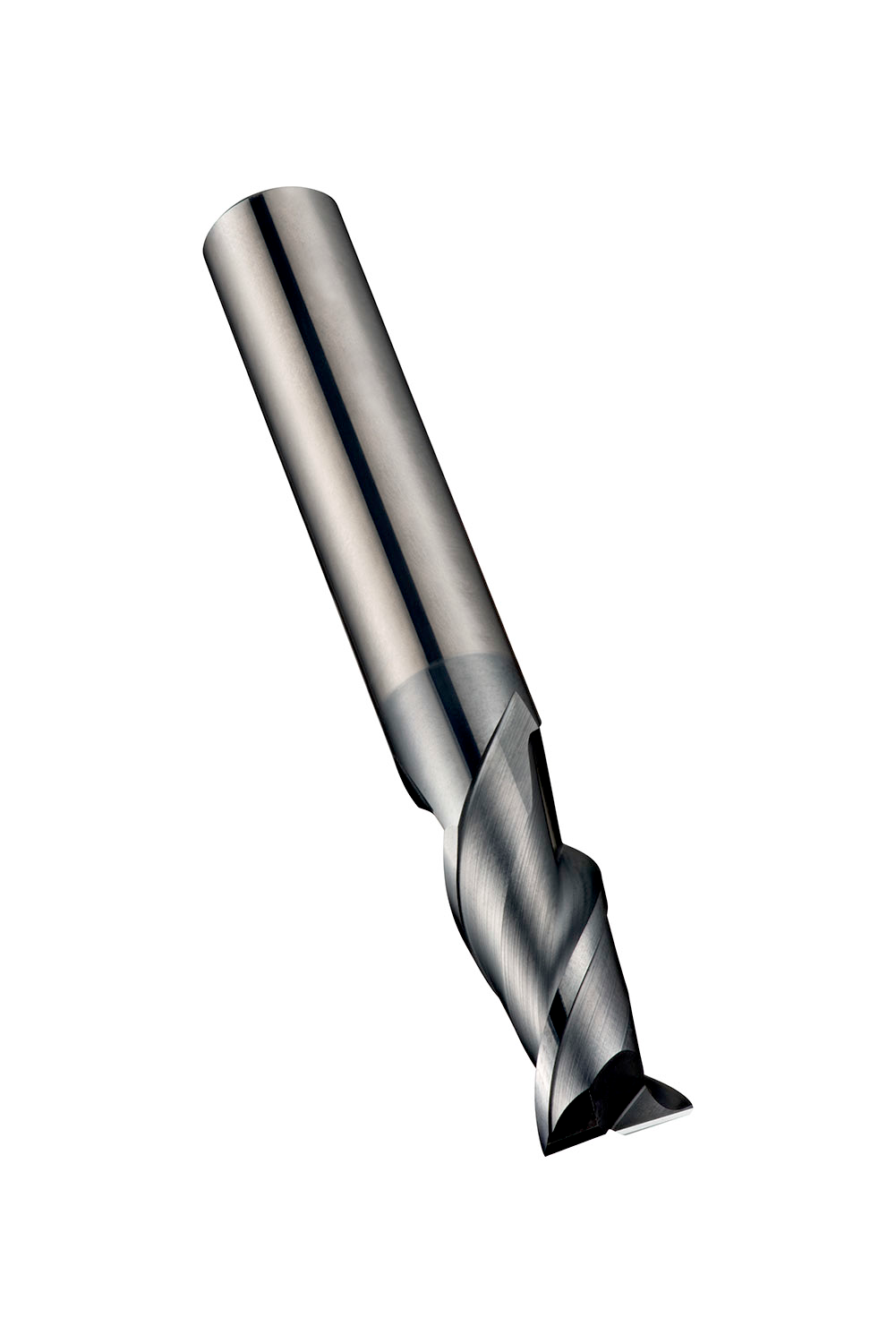

DORMER S7104.0 Carbide Cutters

Product Code: S7104.0

$77.04$70.04 Ex. GST

Product Code: S7104.0 SKU S7104.0 Categories , ,
DORMER S7104.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Short series end mill with 2 flutes, diameter 4mm with 12mm length of cut and 50mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for slot milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.0748 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760685365
Product number (SAP): 86022122
Ordering code ANSI: S7104.0
Gross weight – grams: 22.1
Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 10
With Neck: Yes
ISO: S7104.0

Brand

DORMER
