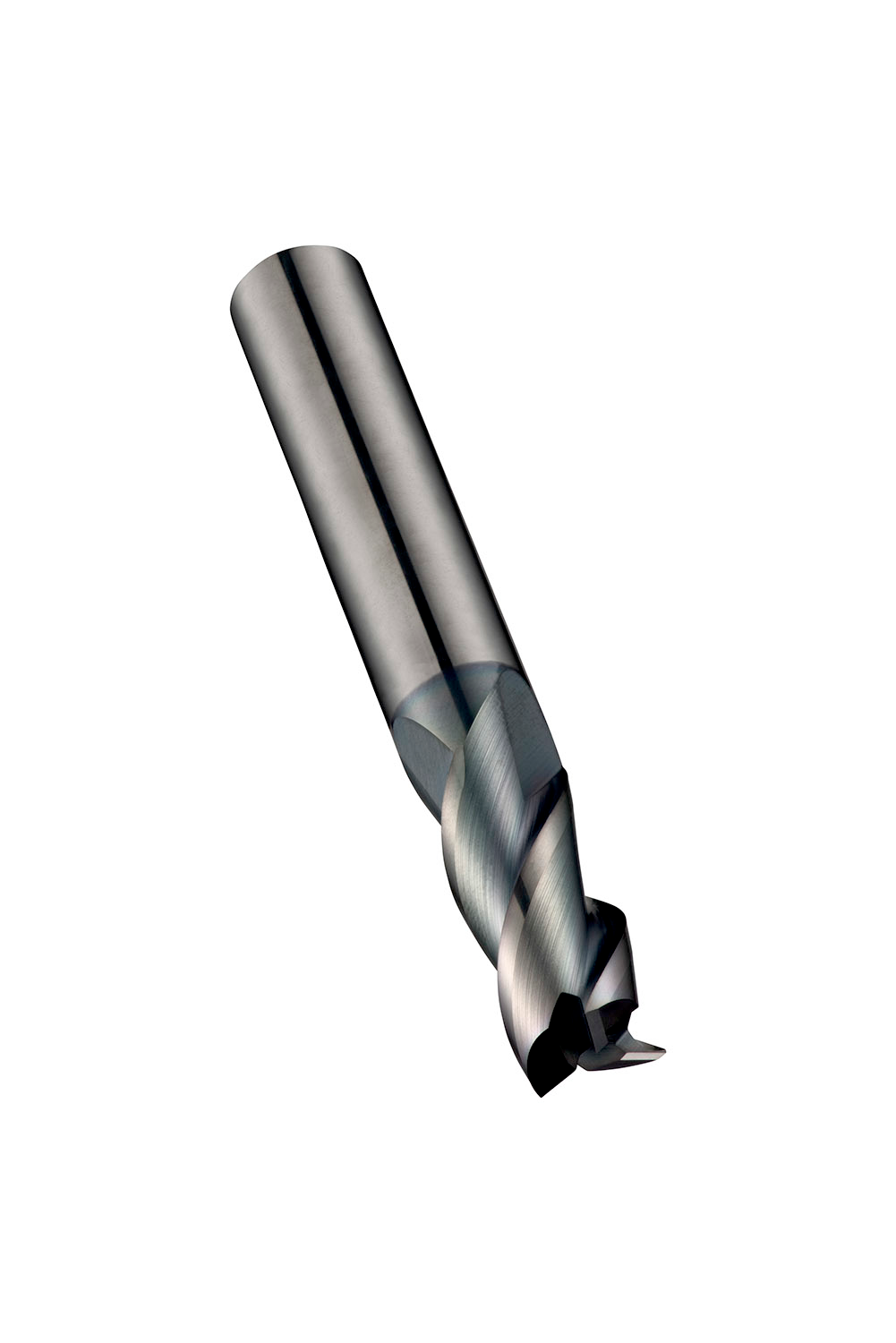

DORMER S7133.0 Carbide Cutters

Product Code: S7133.0

$72.51$65.92 Ex. GST

Product Code: S7133.0 SKU S7133.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series end mill with 3 flutes, diameter 3mm with 9mm length of cut and 40mm overall length, according to DORMER standard with a 3mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling and slot milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.0704 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689929
Product number (SAP): 86026616
Ordering code ANSI: S7133.0
Gross weight – grams: 6.6
Cutting diameter – millimeter (DC): 3 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 9 mm
Overall length – millimeter (OAL): 40 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 10
ISO: S7133.0

Brand

DORMER
