DORMER S71414.0 Carbide Cutters

Product Code: S71414.0

$283.25$257.50 Ex. GST

Product Code: S71414.0 SKU S71414.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

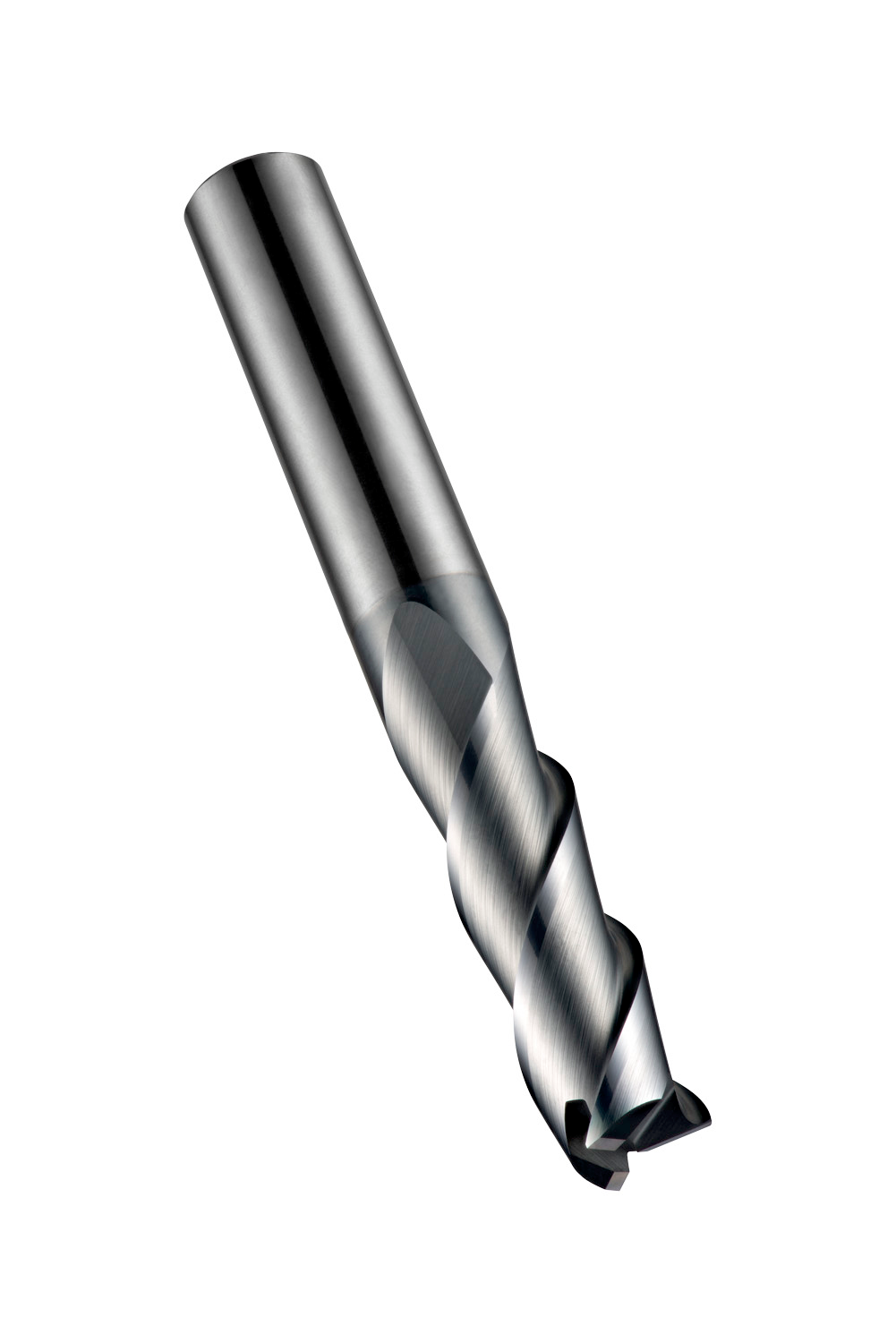

Long series end mill with 3 flutes, diameter 14mm with 57mm length of cut and 125mm overall length, according to DORMER standard with a 14mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.2750 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681725
Product number (SAP): 86021760
Ordering code ANSI: S71414.0
Gross weight – grams: 248
Cutting diameter – millimeter (DC): 14 mm
Connection diameter – millimeter (DCON MS): 14 mm
Depth of cut maximum – millimeter (APMX): 57 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 10
ISO: S71414.0

Brand

DORMER
