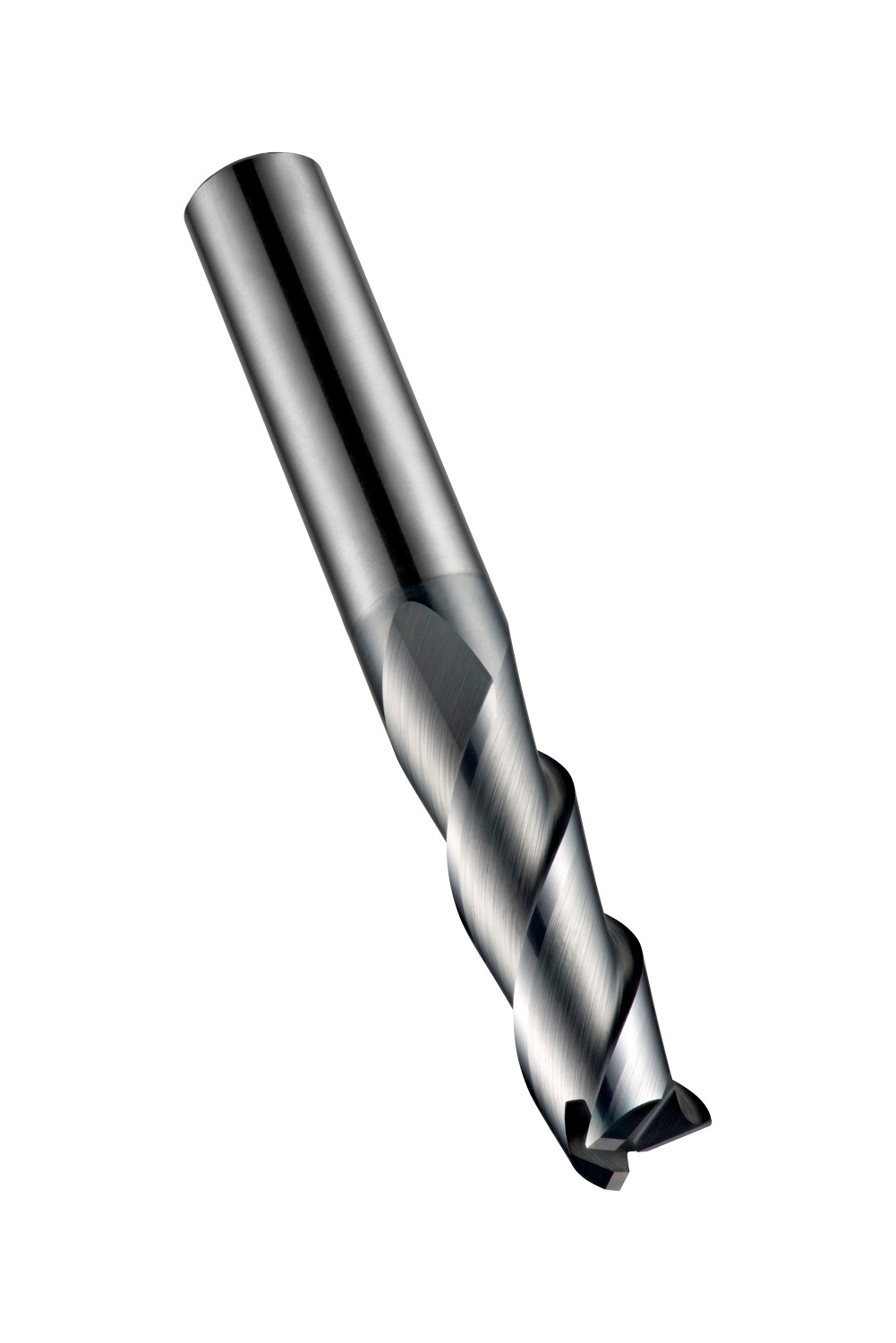

DORMER S71418.0 Carbide Cutters

Product Code: S71418.0

$478.13$434.66 Ex. GST

Product Code: S71418.0 SKU S71418.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Long series end mill with 3 flutes, diameter 18mm with 57mm length of cut and 125mm overall length, according to DORMER standard with a 18mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.4642 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681749
Product number (SAP): 86021762
Ordering code ANSI: S71418.0
Gross weight – grams: 395.5
Cutting diameter – millimeter (DC): 18 mm
Connection diameter – millimeter (DCON MS): 18 mm
Depth of cut maximum – millimeter (APMX): 57 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 10
ISO: S71418.0

Brand

DORMER
