DORMER S7153.0 Carbide Cutters

Product Code: S7153.0

$98.01$89.10 Ex. GST

Product Code: S7153.0 SKU S7153.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

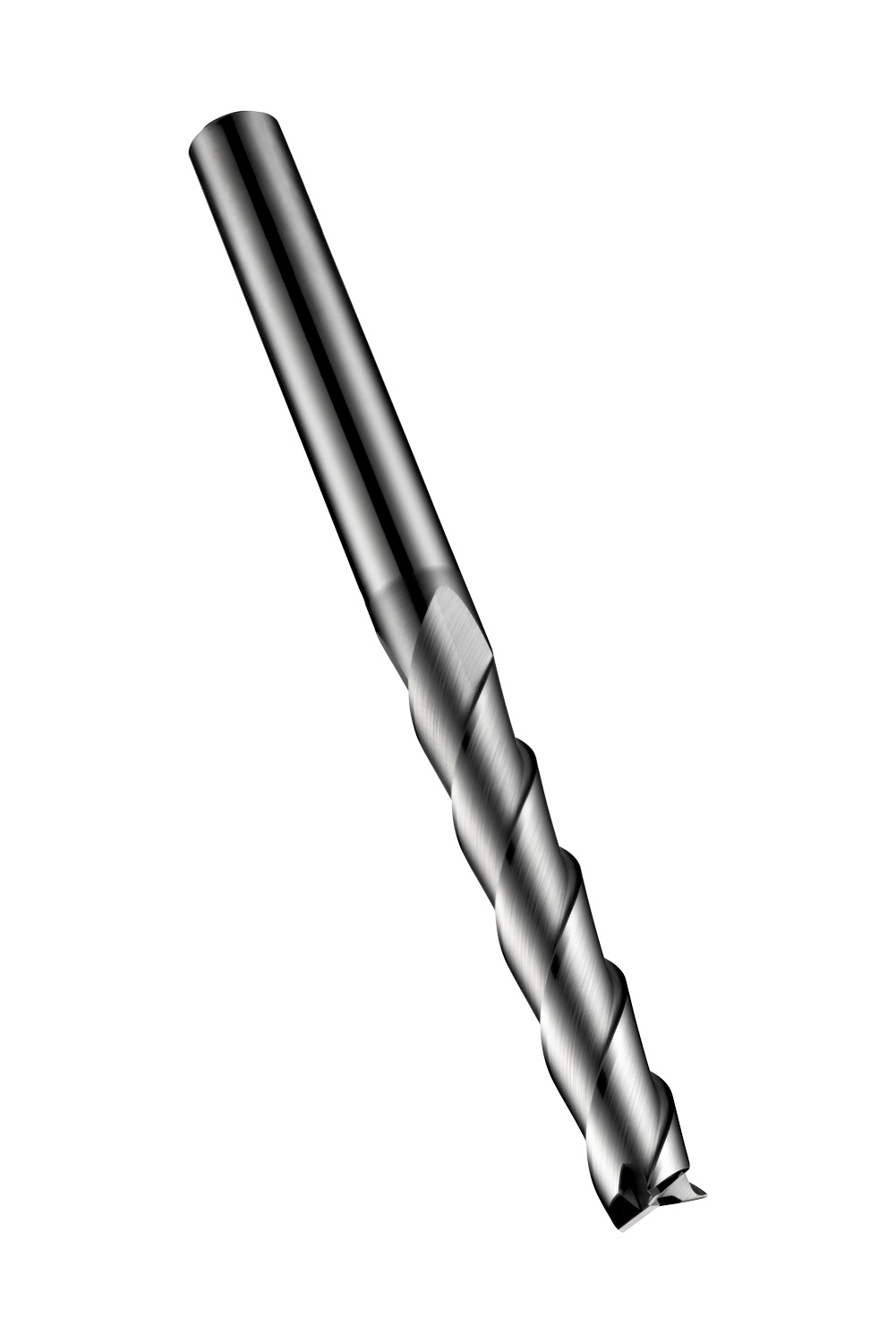

Extra long series end mill with 3 flutes, diameter 3mm with 25mm length of cut and 100mm overall length, according to DORMER standard with a 3mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.0952 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681763
Product number (SAP): 86021764
Ordering code ANSI: S7153.0
Gross weight – grams: 15.7
Cutting diameter – millimeter (DC): 3 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 10
ISO: S7153.0

Brand

DORMER
