DORMER S7154.0 Carbide Cutters

Product Code: S7154.0

$106.50$96.82 Ex. GST

Product Code: S7154.0 SKU S7154.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

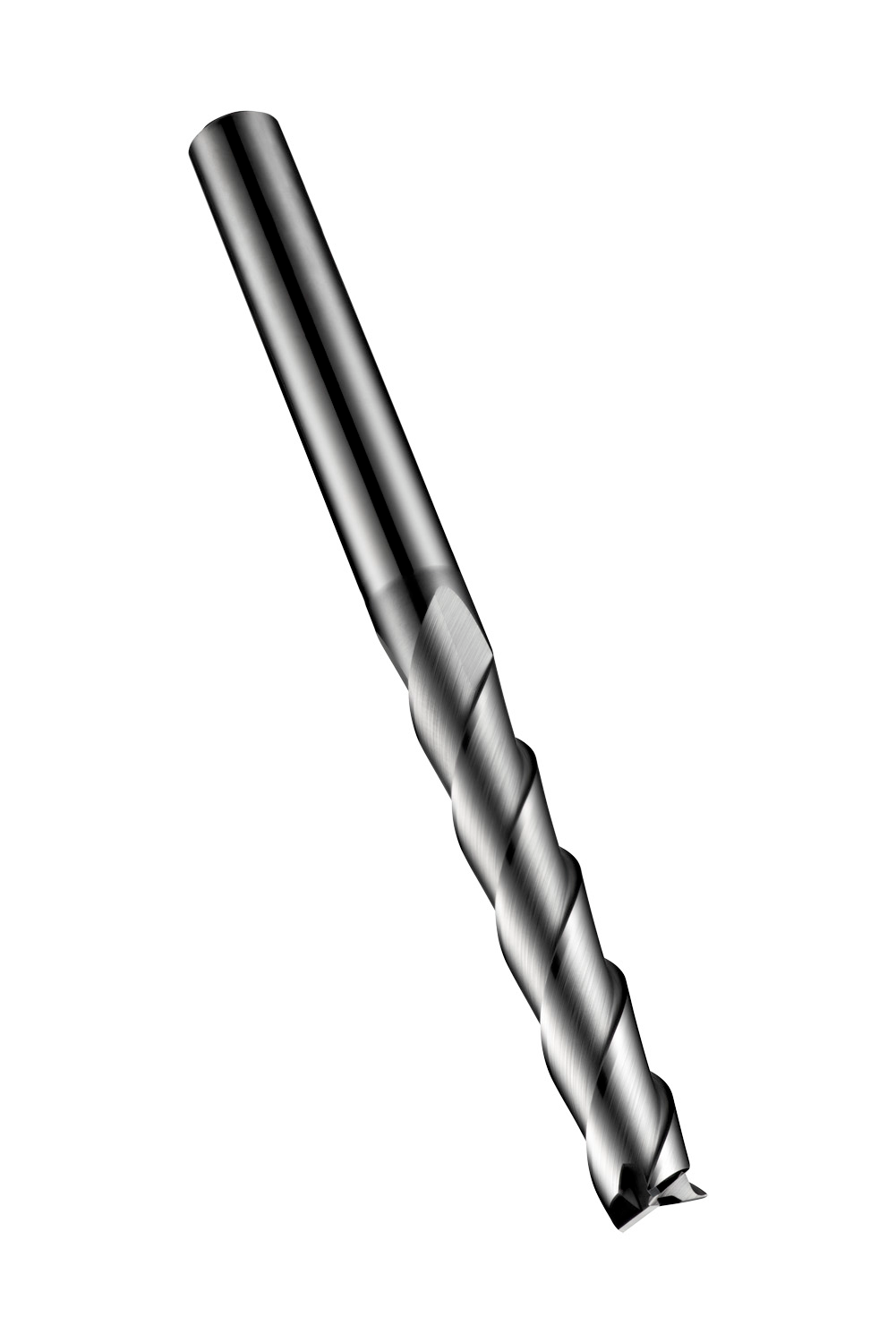

Extra long series end mill with 3 flutes, diameter 4mm with 31mm length of cut and 100mm overall length, according to DORMER standard with a 4mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.1034 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681770
Product number (SAP): 86021765
Ordering code ANSI: S7154.0
Gross weight – grams: 22.6
Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 4 mm
Depth of cut maximum – millimeter (APMX): 31 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 10
ISO: S7154.0

Brand

DORMER
