DORMER S71620.0 Carbide Cutters

Product Code: S71620.0

$575.56$523.24 Ex. GST

Product Code: S71620.0 SKU S71620.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

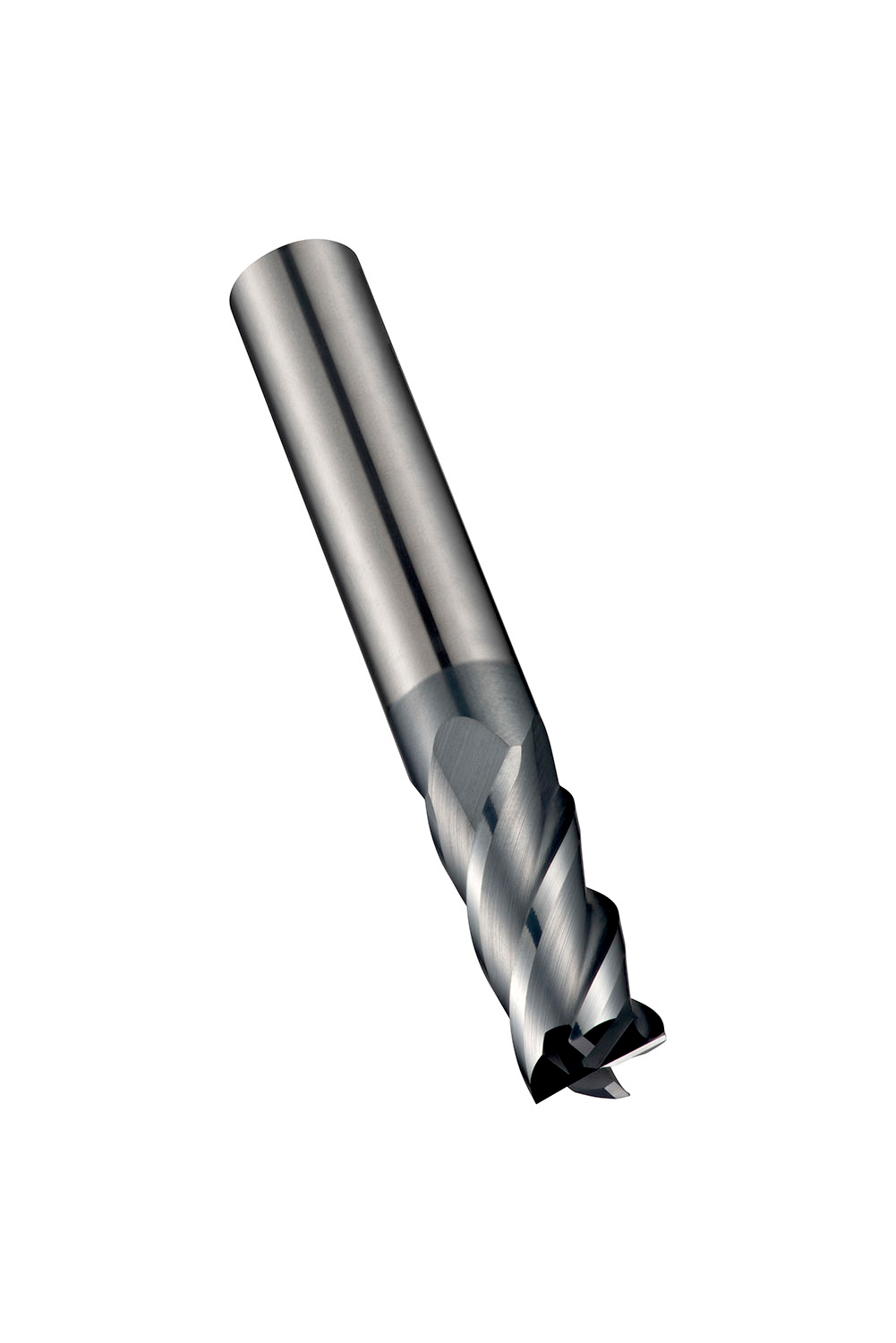

Short series end mill with 4 flutes, diameter 20mm with 38mm length of cut and 100mm overall length, according to DORMER standard with a 20mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.5588 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760690147
Product number (SAP): 86026638
Ordering code ANSI: S71620.0
Gross weight – grams: 398
Cutting diameter – millimeter (DC): 20 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S71620.0

Brand

DORMER
