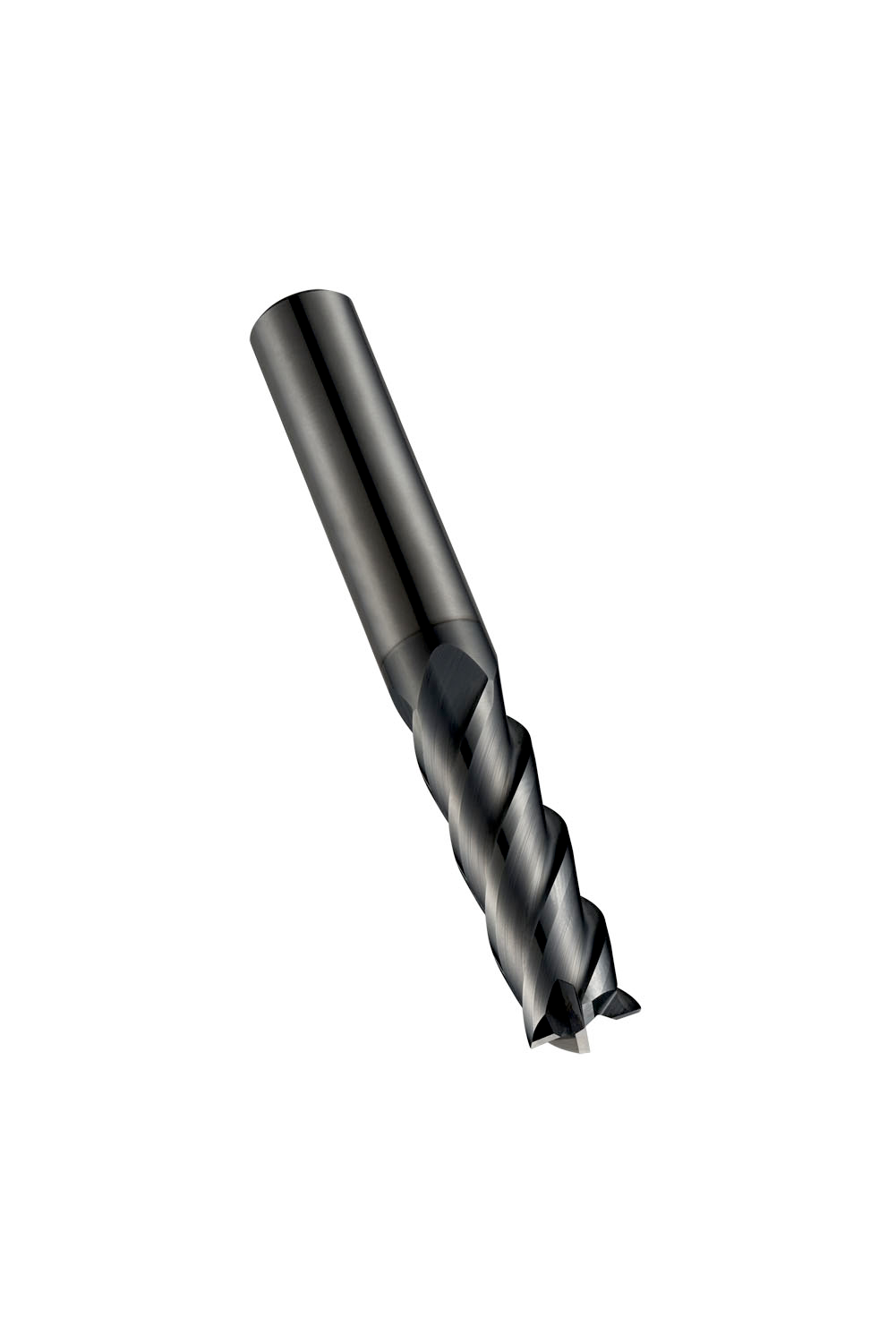

DORMER S71712.0 Carbide Cutters

Product Code: S71712.0

$248.13$225.57 Ex. GST

Product Code: S71712.0 SKU S71712.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Long series end mill with 4 flutes, diameter 12mm with 50mm length of cut and 100mm overall length, according to DORMER standard with a 12mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.2409 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760682548
Product number (SAP): 86021842
Ordering code ANSI: S71712.0
Gross weight – grams: 145
Cutting diameter – millimeter (DC): 12 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 50 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S71712.0

Brand

DORMER
