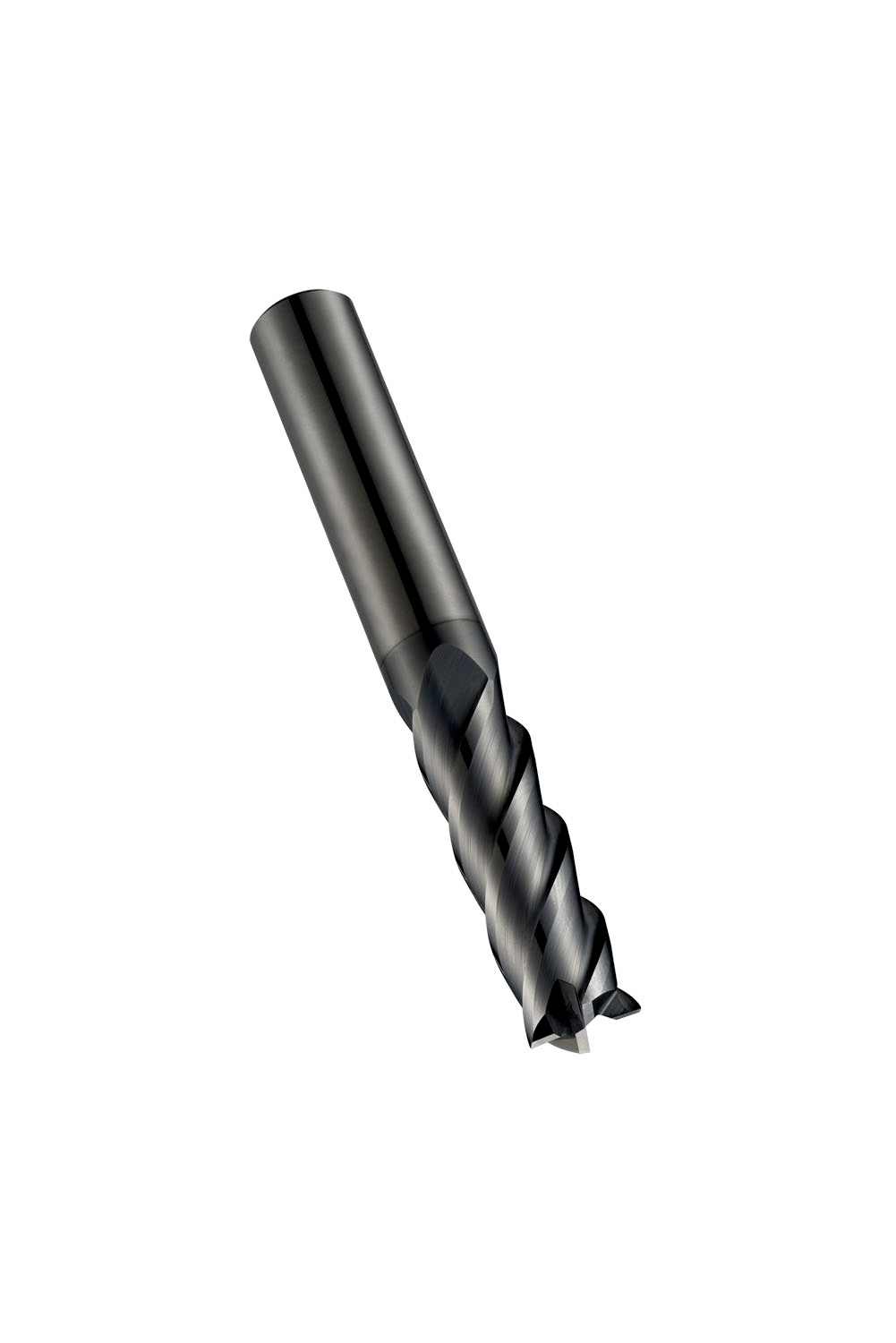

DORMER S7178.0 Carbide Cutters

Product Code: S7178.0

$135.96$123.60 Ex. GST

Product Code: S7178.0 SKU S7178.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Long series end mill with 4 flutes, diameter 8mm with 31mm length of cut and 75mm overall length, according to DORMER standard with a 8mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.1320 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760682524
Product number (SAP): 86021840
Ordering code ANSI: S7178.0
Gross weight – grams: 53.3
Cutting diameter – millimeter (DC): 8 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 31 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S7178.0

Brand

DORMER
