DORMER S71810.0 Carbide Cutters

Product Code: S71810.0

$220.94$200.85 Ex. GST

Product Code: S71810.0 SKU S71810.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

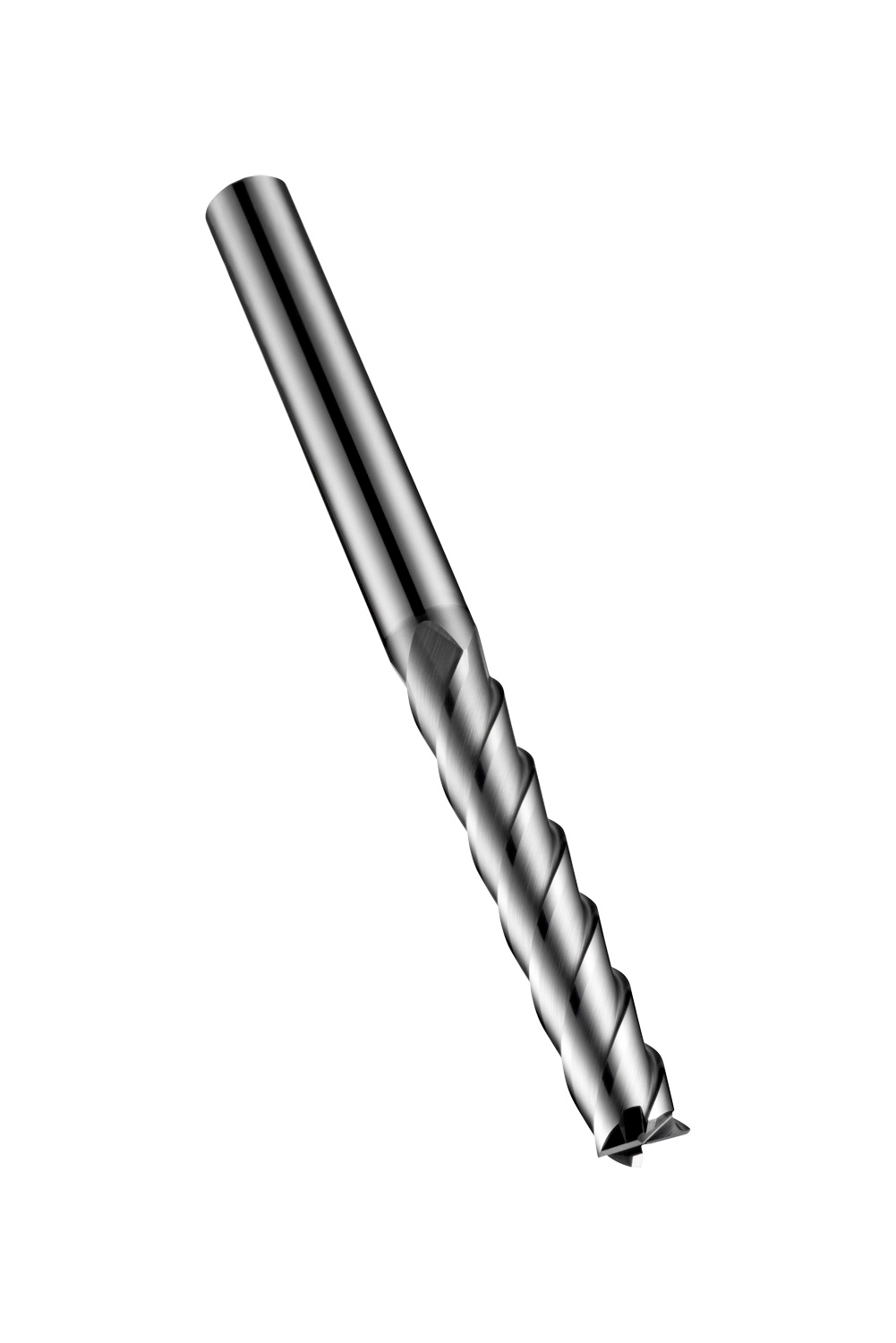

Extra long series end mill with 4 flutes, diameter 10mm with 57mm length of cut and 125mm overall length, according to DORMER standard with a 10mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.2145 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683231
Product number (SAP): 86021911
Ordering code ANSI: S71810.0
Gross weight – grams: 131
Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 57 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S71810.0

Brand

DORMER
