DORMER S71818.0 Carbide Cutters

Product Code: S71818.0

$644.68$586.07 Ex. GST

Product Code: S71818.0 SKU S71818.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

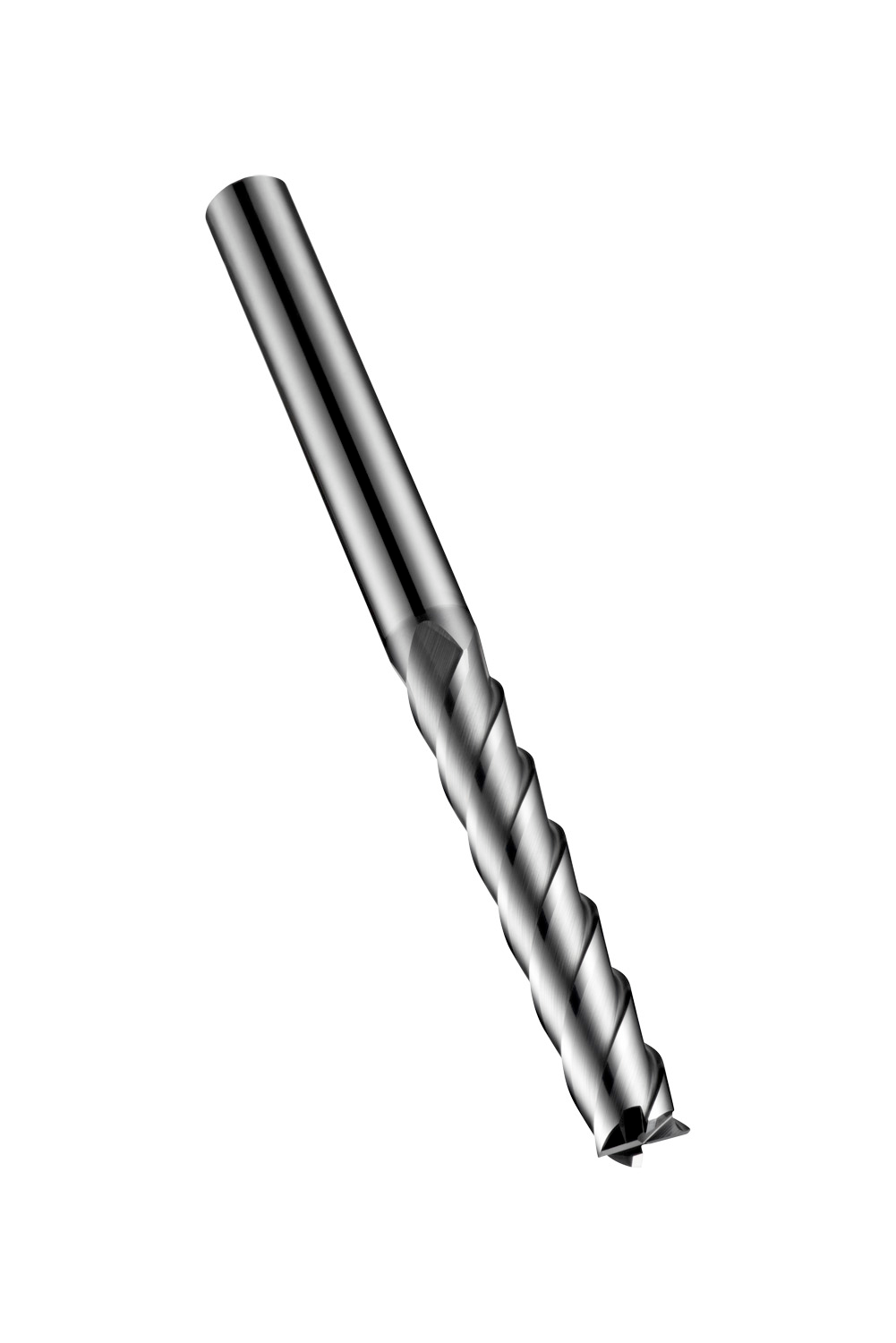

Extra long series end mill with 4 flutes, diameter 18mm with 75mm length of cut and 150mm overall length, according to DORMER standard with a 18mm plain shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.6259 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683279
Product number (SAP): 86021915
Ordering code ANSI: S71818.0
Gross weight – grams: 495
Cutting diameter – millimeter (DC): 18 mm
Connection diameter – millimeter (DCON MS): 18 mm
Depth of cut maximum – millimeter (APMX): 75 mm
Overall length – millimeter (OAL): 150 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S71818.0

Brand

DORMER
