DORMER S722HB12.0 Carbide Cutters

Product Code: S722HB12.0

$286.65$260.59 Ex. GST

Product Code: S722HB12.0 SKU S722HB12.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

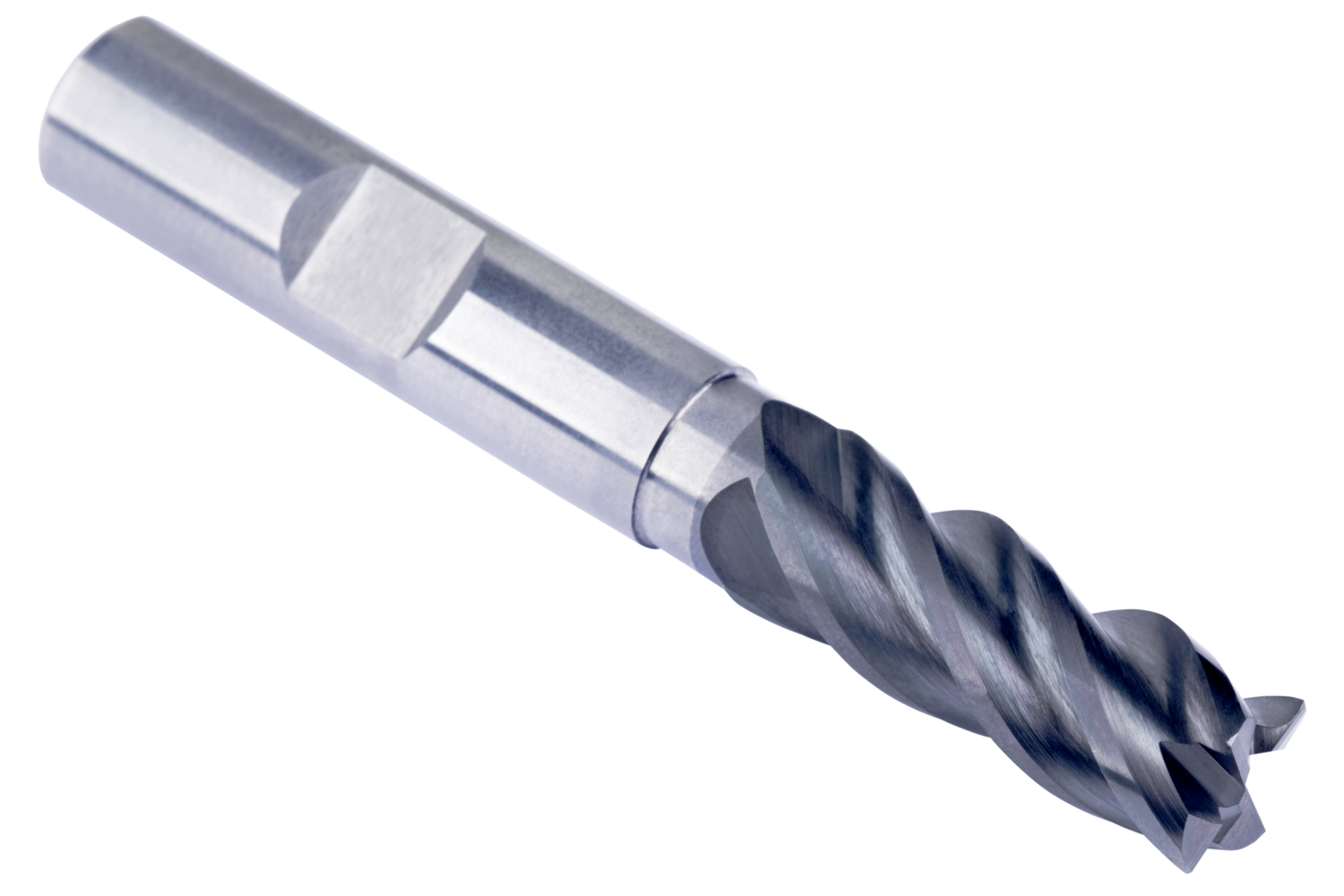

Regular length End mill with 4 flutes, diameter 12mm with 26mm length of cut, 83mm overall length, 37mm reach with neck relief and 0.2mm corner radii, according to DORMER standard with a 12mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 7° rake angle for shoulder milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.2783 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950777
Product number (SAP): 86038182
Ordering code ANSI: S722HB12.0
Gross weight – grams: 119.9
Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 0.2 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 37 mm
Neck diameter – millimeter (DN): 11 mm
Radial rake angle (GAMF): 7
With Neck: Yes
ISO: S722HB12.0

Brand

DORMER
