DORMER S722HB18.0 Carbide Cutters

Product Code: S722HB18.0

$608.42$553.11 Ex. GST

Product Code: S722HB18.0 SKU S722HB18.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

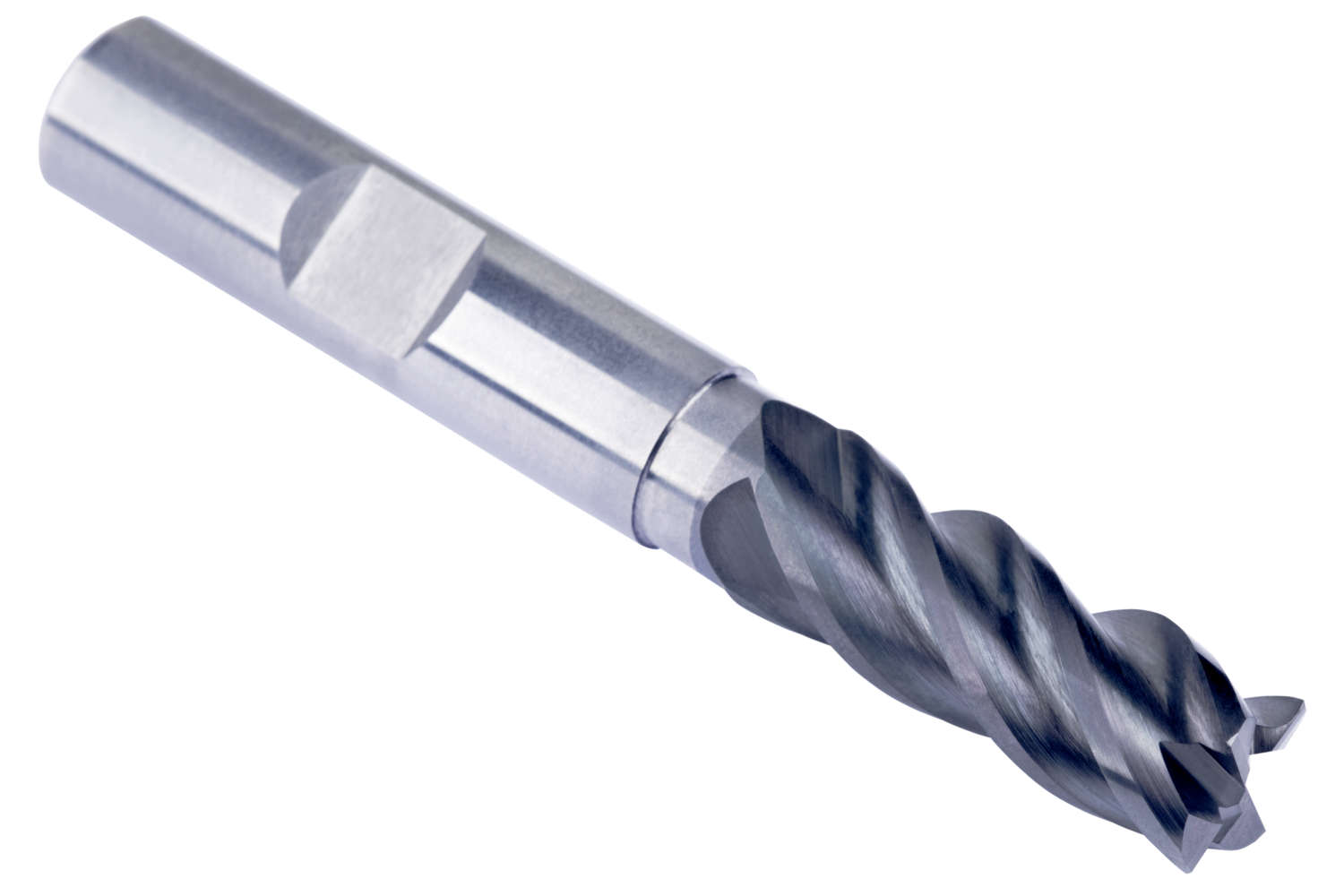

Regular length End mill with 4 flutes, diameter 18mm with 32mm length of cut, 92mm overall length, 42mm reach with neck relief and 0.2mm corner radii, according to DORMER standard with a 18mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 7° rake angle for shoulder milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.5907 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950807
Product number (SAP): 86038185
Ordering code ANSI: S722HB18.0
Gross weight – grams: 290.4
Cutting diameter – millimeter (DC): 18 mm
Corner radius – millimeter (RE): 0.2 mm
Connection diameter – millimeter (DCON MS): 18 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 92 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 42 mm
Neck diameter – millimeter (DN): 17 mm
Radial rake angle (GAMF): 7
With Neck: Yes
ISO: S722HB18.0

Brand

DORMER
