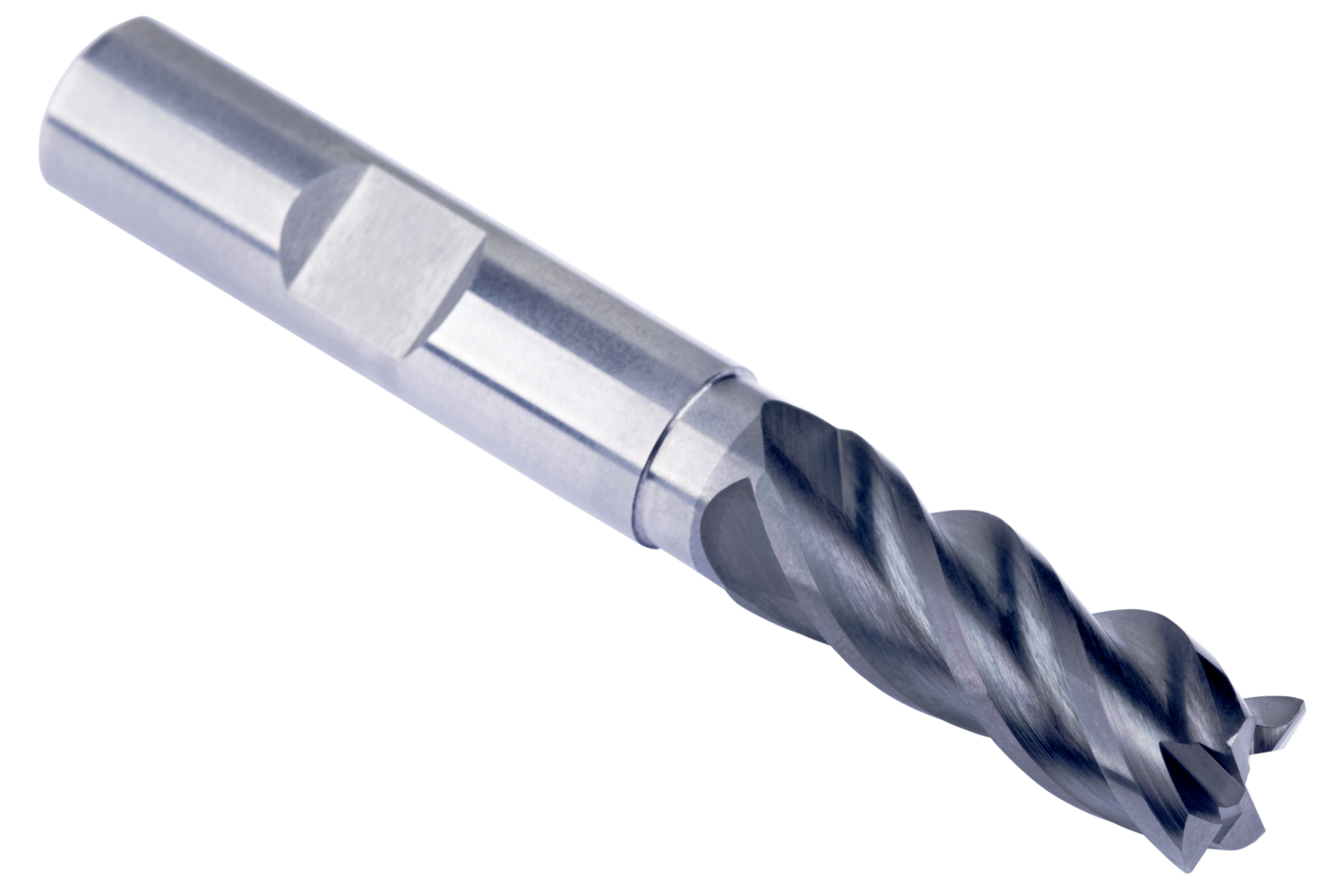

DORMER S722HB5.0 Carbide Cutters

Product Code: S722HB5.0

$112.74$102.49 Ex. GST

Product Code: S722HB5.0 SKU S722HB5.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length End mill with 4 flutes, diameter 5mm with 13mm length of cut, 57mm overall length, 20mm reach with neck relief and 0.1mm corner radii, according to DORMER standard with a 6mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 7° rake angle for shoulder milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.1095 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950739
Product number (SAP): 86038178
Ordering code ANSI: S722HB5.0
Gross weight – grams: 25.3
Cutting diameter – millimeter (DC): 5 mm
Corner radius – millimeter (RE): 0.1 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 20 mm
Neck diameter – millimeter (DN): 4.6 mm
Radial rake angle (GAMF): 7
With Neck: Yes
ISO: S722HB5.0

Brand

DORMER
