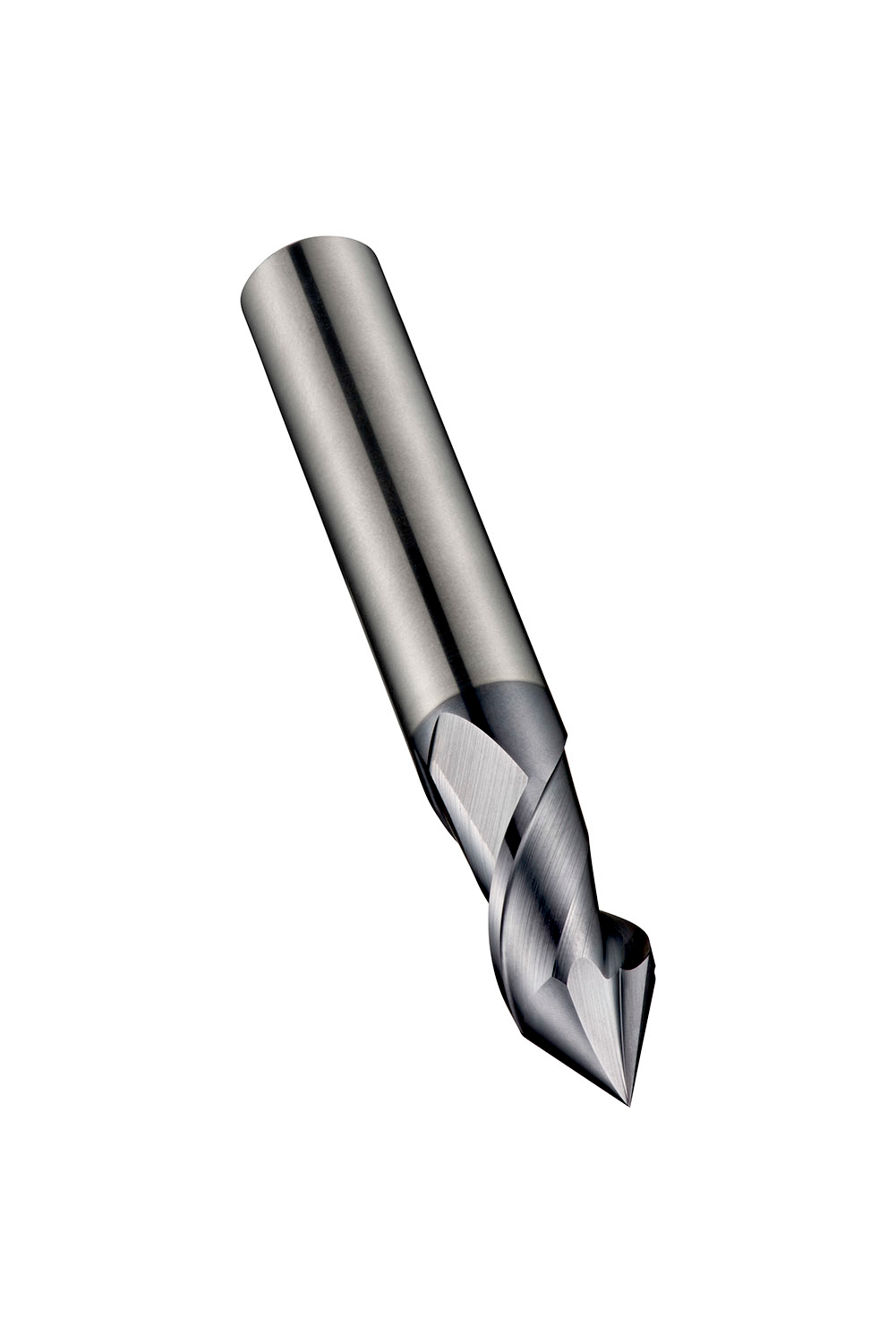

DORMER S73910.0 Carbide Cutters

Product Code: S73910.0

$160.89$146.26 Ex. GST

Product Code: S73910.0 SKU S73910.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series 60° chamfering mill with 2 flutes, diameter 10mm with 22mm length of cut and 70mm overall length, according to DORMER standard with a 10mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1562 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684405
Product number (SAP): 86022026
Ordering code ANSI: S73910.0
Gross weight – grams: 67.9
Tool cutting edge angle (KAPR): 60
Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 70 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 10
ISO: S73910.0

Brand

DORMER
