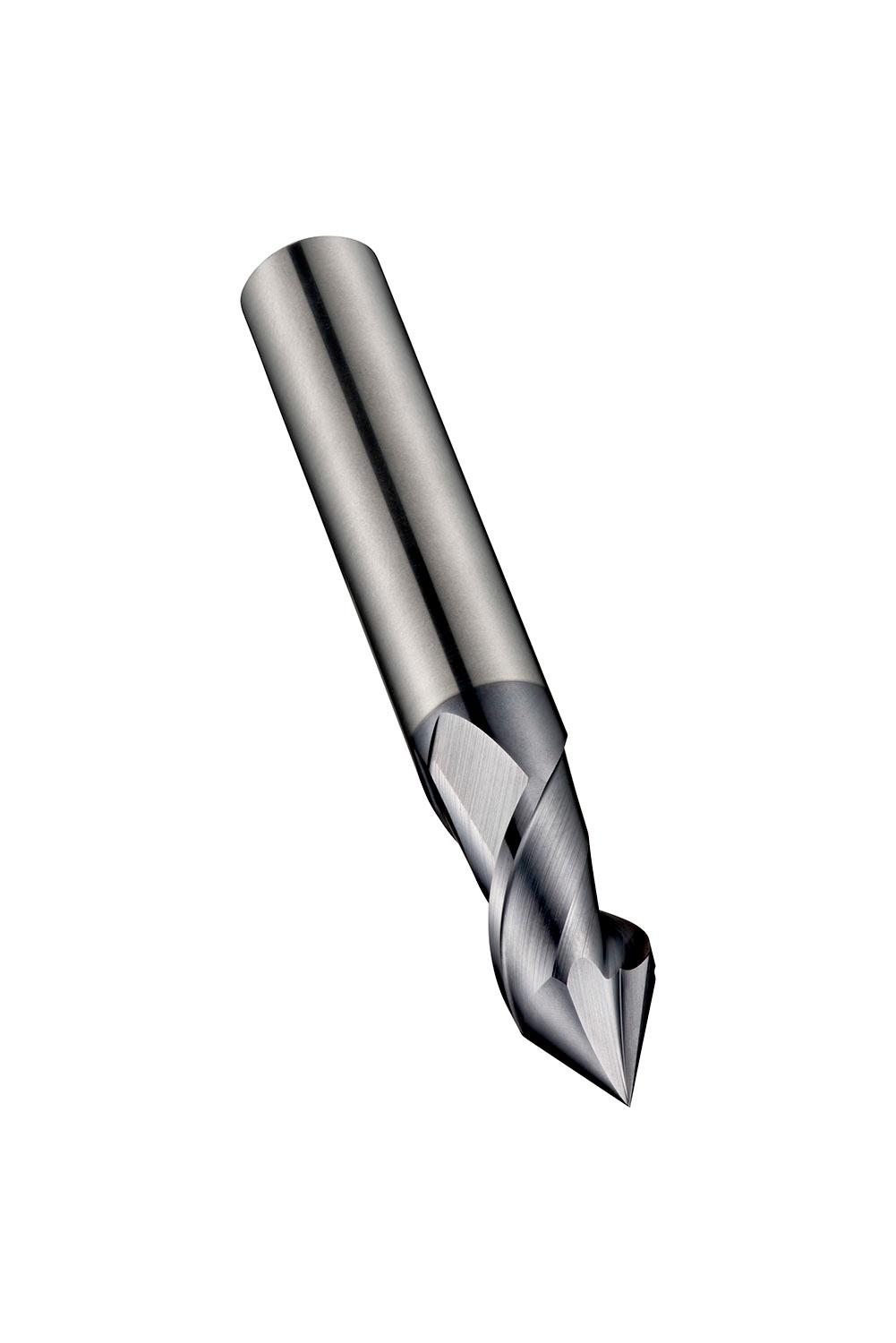

DORMER S7394.0 Carbide Cutters

Product Code: S7394.0

$84.98$77.25 Ex. GST

Product Code: S7394.0 SKU S7394.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series 60° chamfering mill with 2 flutes, diameter 4mm with 12mm length of cut and 50mm overall length, according to DORMER standard with a 4mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.0825 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684368
Product number (SAP): 86022022
Ordering code ANSI: S7394.0
Gross weight – grams: 10.7
Tool cutting edge angle (KAPR): 60
Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 4 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 10
ISO: S7394.0

Brand

DORMER
