DORMER S7408.0 Carbide Cutters

Product Code: S7408.0

$121.23$110.21 Ex. GST

Product Code: S7408.0 SKU S7408.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

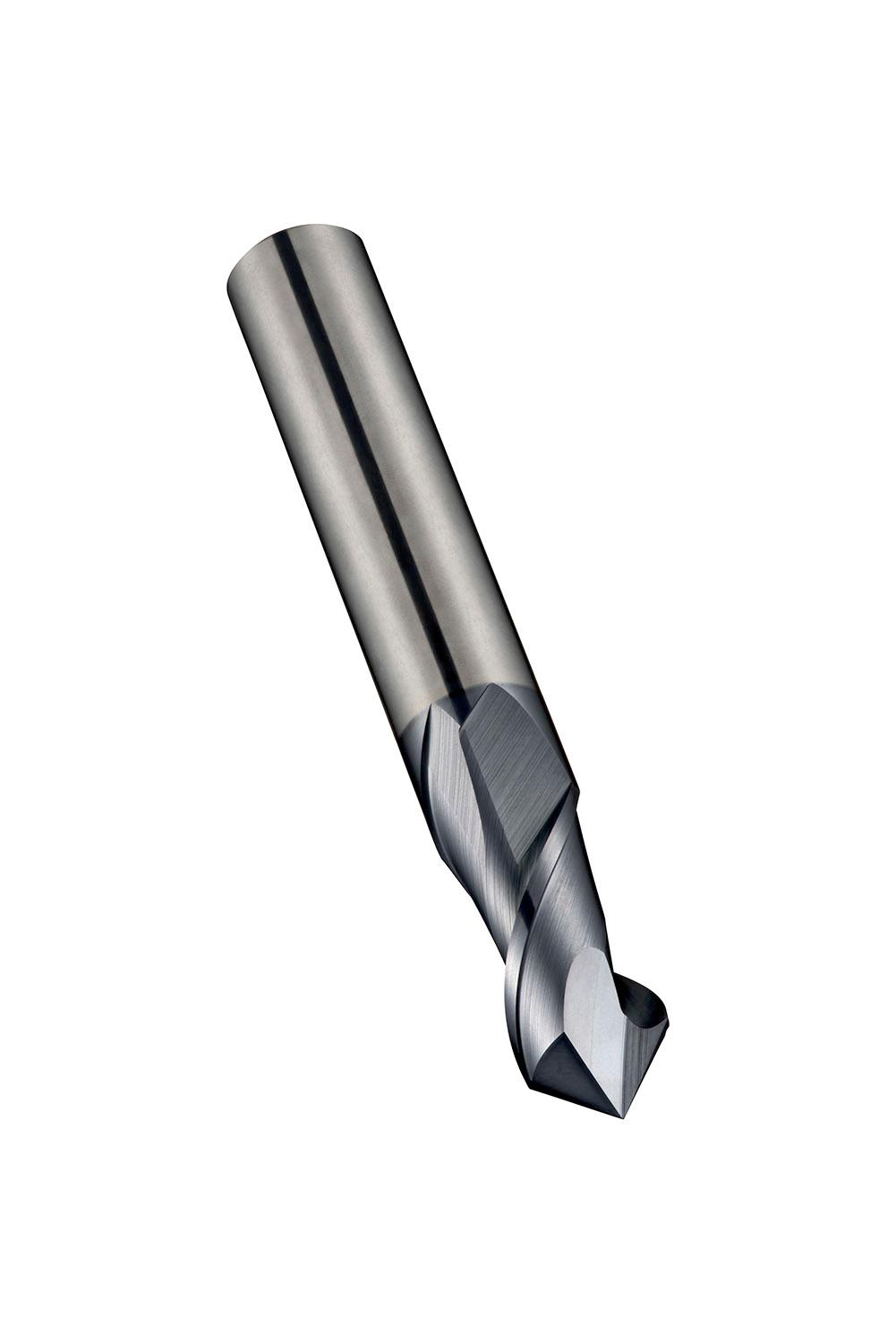

Short series 90° chamfering mill with 2 flutes, diameter 8mm with 20mm length of cut and 64mm overall length, according to DORMER standard with a 8mm plain shank, solid carbide with AlTiN coating, 40° helix and 10° rake angle for chamfer milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1177 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684481
Product number (SAP): 86022034
Ordering code ANSI: S7408.0
Gross weight – grams: 43.9
Tool cutting edge angle (KAPR): 90
Cutting diameter – millimeter (DC): 8 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 20 mm
Overall length – millimeter (OAL): 64 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 10
ISO: S7408.0

Brand

DORMER
