DORMER S76114.0 Carbide Cutters

Product Code: S76114.0

$311.58$283.25 Ex. GST

Product Code: S76114.0 SKU S76114.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

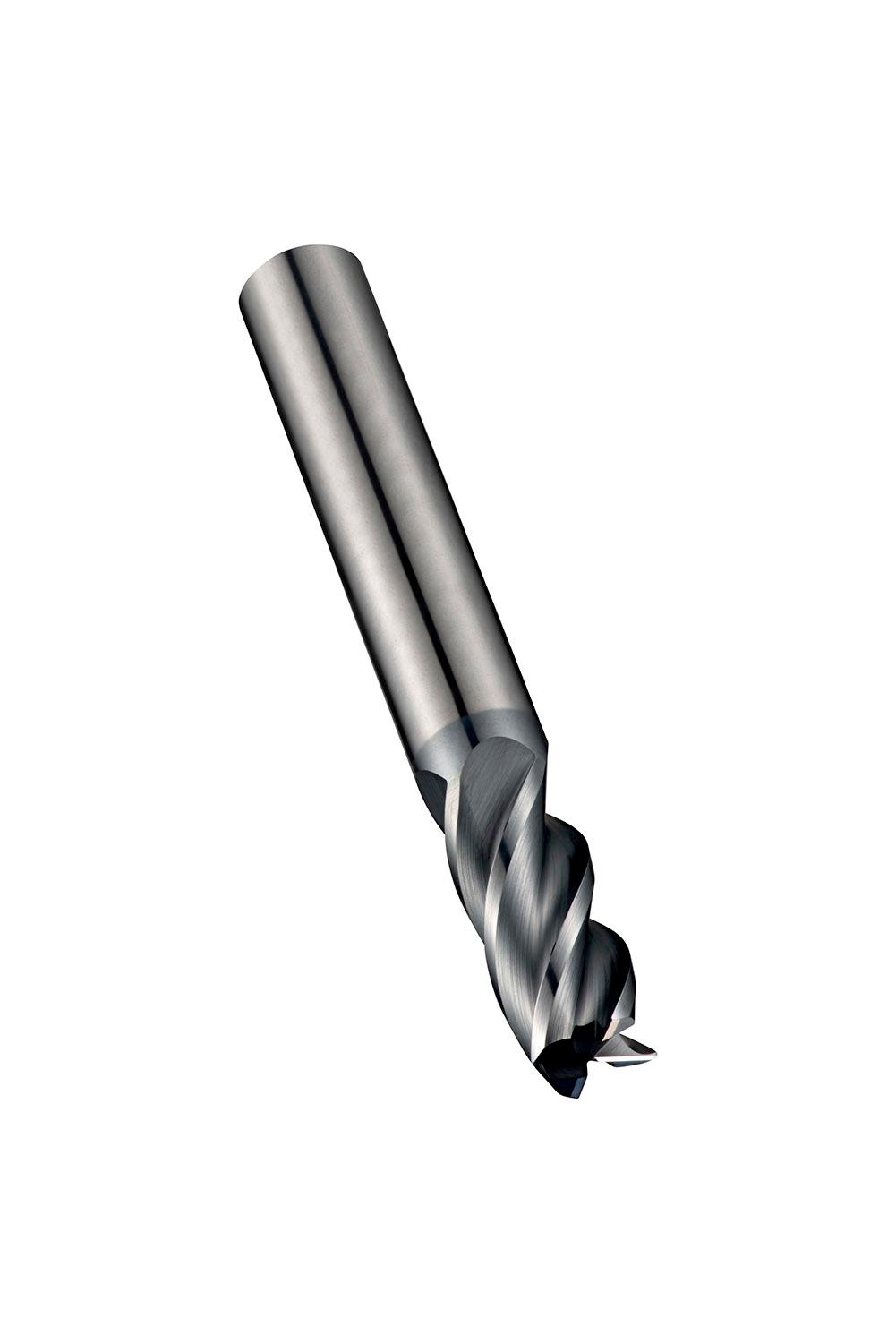

Short series end mill with 4 flutes, diameter 14mm with 32mm length of cut and 83mm overall length, according to DORMER standard with a 14mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling and plunging in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.3025 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760685525
Product number (SAP): 86022138
Ordering code ANSI: S76114.0
Gross weight – grams: 156.8
Cutting diameter – millimeter (DC): 14 mm
Connection diameter – millimeter (DCON MS): 14 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S76114.0

Brand

DORMER
