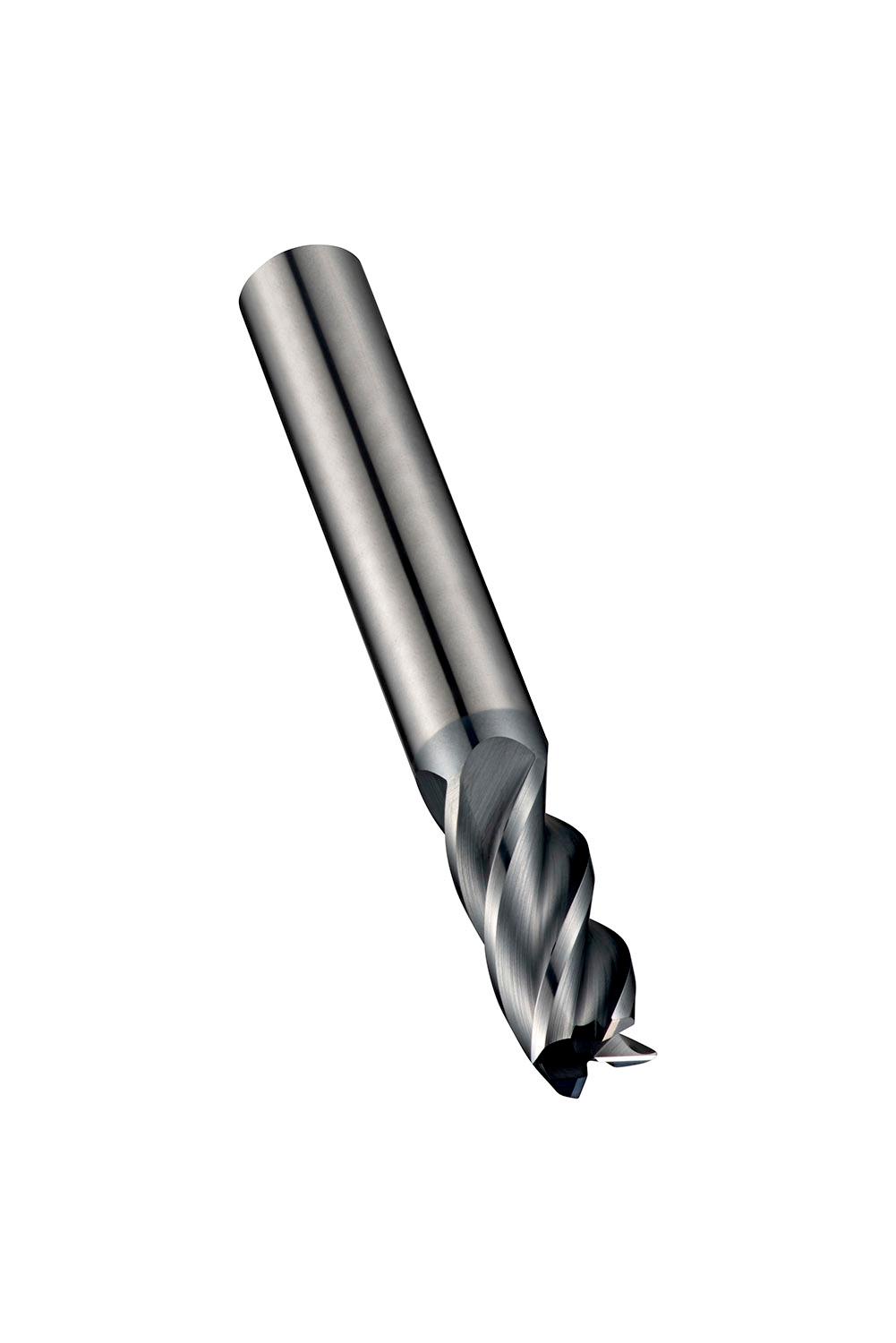

DORMER S76116.0 Carbide Cutters

Product Code: S76116.0

$409.01$371.83 Ex. GST

Product Code: S76116.0 SKU S76116.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series end mill with 4 flutes, diameter 16mm with 32mm length of cut and 92mm overall length, according to DORMER standard with a 16mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling and plunging in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.3971 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760685532
Product number (SAP): 86022139
Ordering code ANSI: S76116.0
Gross weight – grams: 229.9
Cutting diameter – millimeter (DC): 16 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 92 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S76116.0

Brand

DORMER
