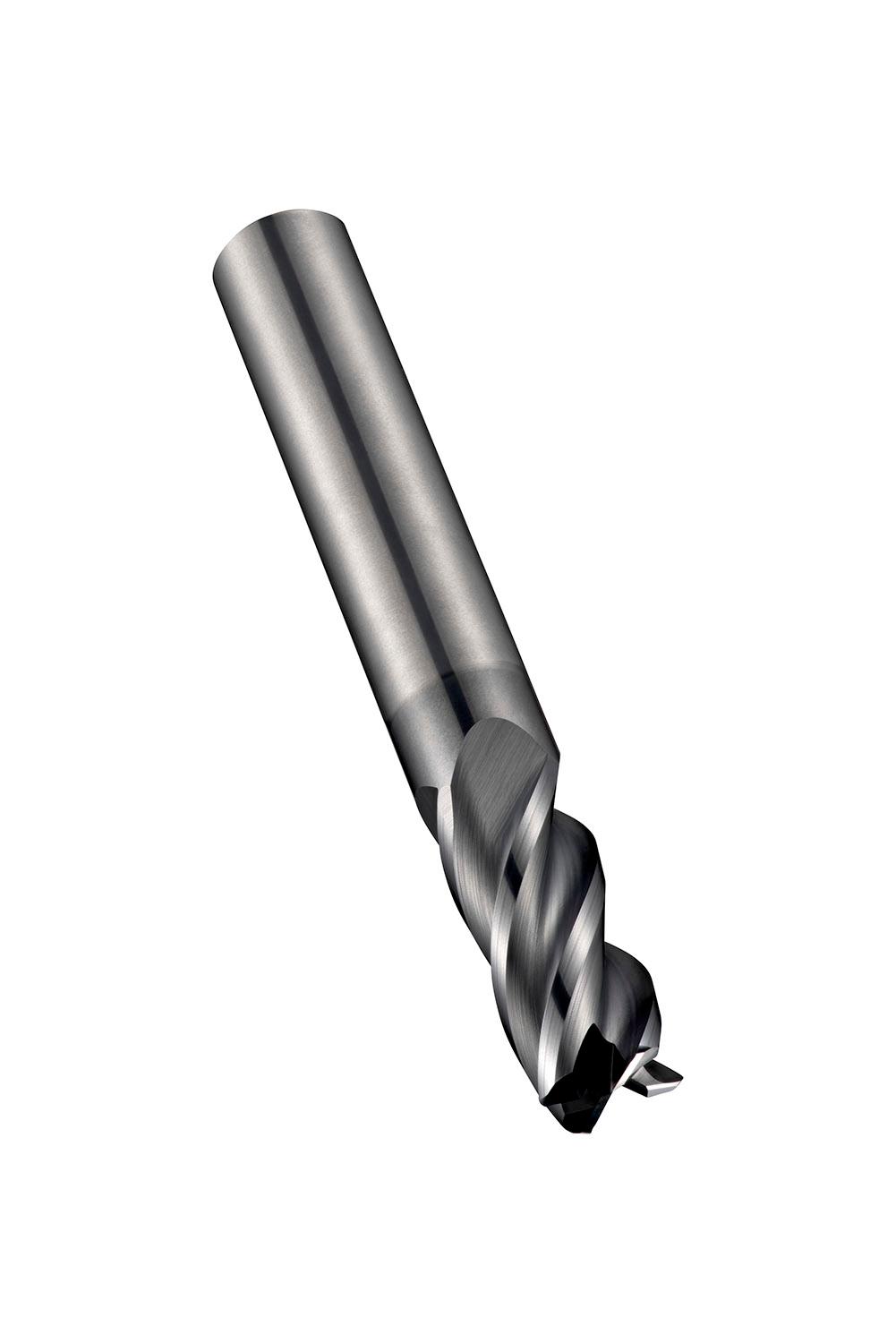

DORMER S7633.0XR0.3 Carbide Cutters

Product Code: S7633.0XR0.3

$103.68$94.25 Ex. GST

Product Code: S7633.0XR0.3 SKU S7633.0XR0.3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series corner radius end mill with 4 flutes, diameter 3mm with 9mm length of cut, 40mm overall length and 0.3mm corner radii, according to DORMER standard with a 3mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.1007 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683927
Product number (SAP): 86021978
Ordering code ANSI: S7633.0XR0.3
Gross weight – grams: 6.6
Cutting diameter – millimeter (DC): 3 mm
Corner radius – millimeter (RE): 0.3 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 9 mm
Overall length – millimeter (OAL): 40 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S7633.0XR0.3

Brand

DORMER
