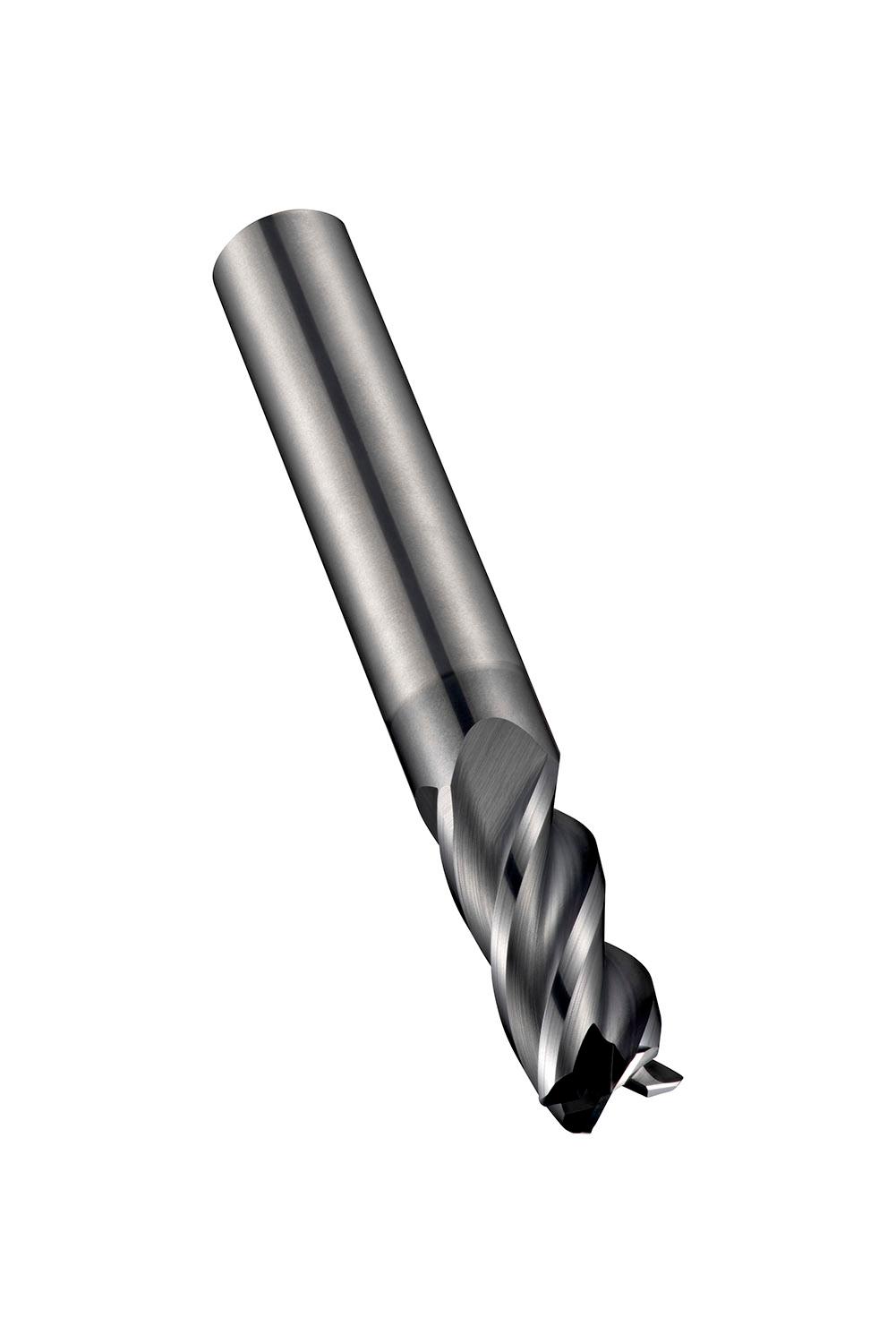

DORMER S7636.0XR1.0 Carbide Cutters

Product Code: S7636.0XR1.0

$114.43$104.03 Ex. GST

Product Code: S7636.0XR1.0 SKU S7636.0XR1.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series corner radius end mill with 4 flutes, diameter 6mm with 16mm length of cut, 50mm overall length and 1mm corner radii, according to DORMER standard with a 6mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.1111 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683989
Product number (SAP): 86021984
Ordering code ANSI: S7636.0XR1.0
Gross weight – grams: 23.6
Cutting diameter – millimeter (DC): 6 mm
Corner radius – millimeter (RE): 1 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S7636.0XR1.0

Brand

DORMER
