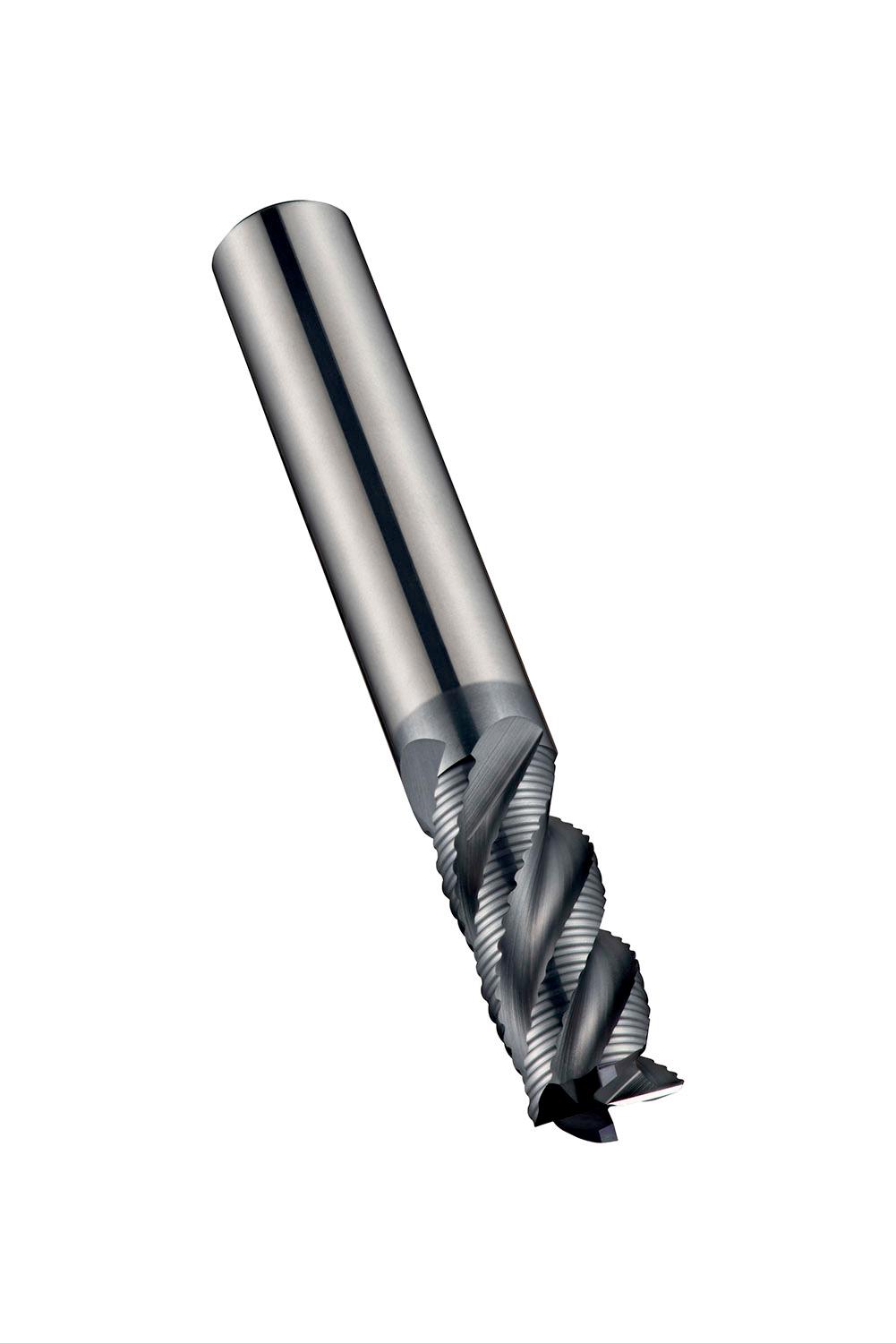

DORMER S76512.0 Carbide Cutters

Product Code: S76512.0

$310.44$282.22 Ex. GST

Product Code: S76512.0 SKU S76512.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series roughing end mill with NR regular coarse pitch profile and 4 flutes, diameter 12mm with 26mm length of cut, 75mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 12mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 10° rake angle for shoulder milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

Additional information

Weight 0.3014 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684160
Product number (SAP): 86022002
Ordering code ANSI: S76512.0
Gross weight – grams: 110.9
Cutting diameter – millimeter (DC): 12 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S76512.0

Brand

DORMER
