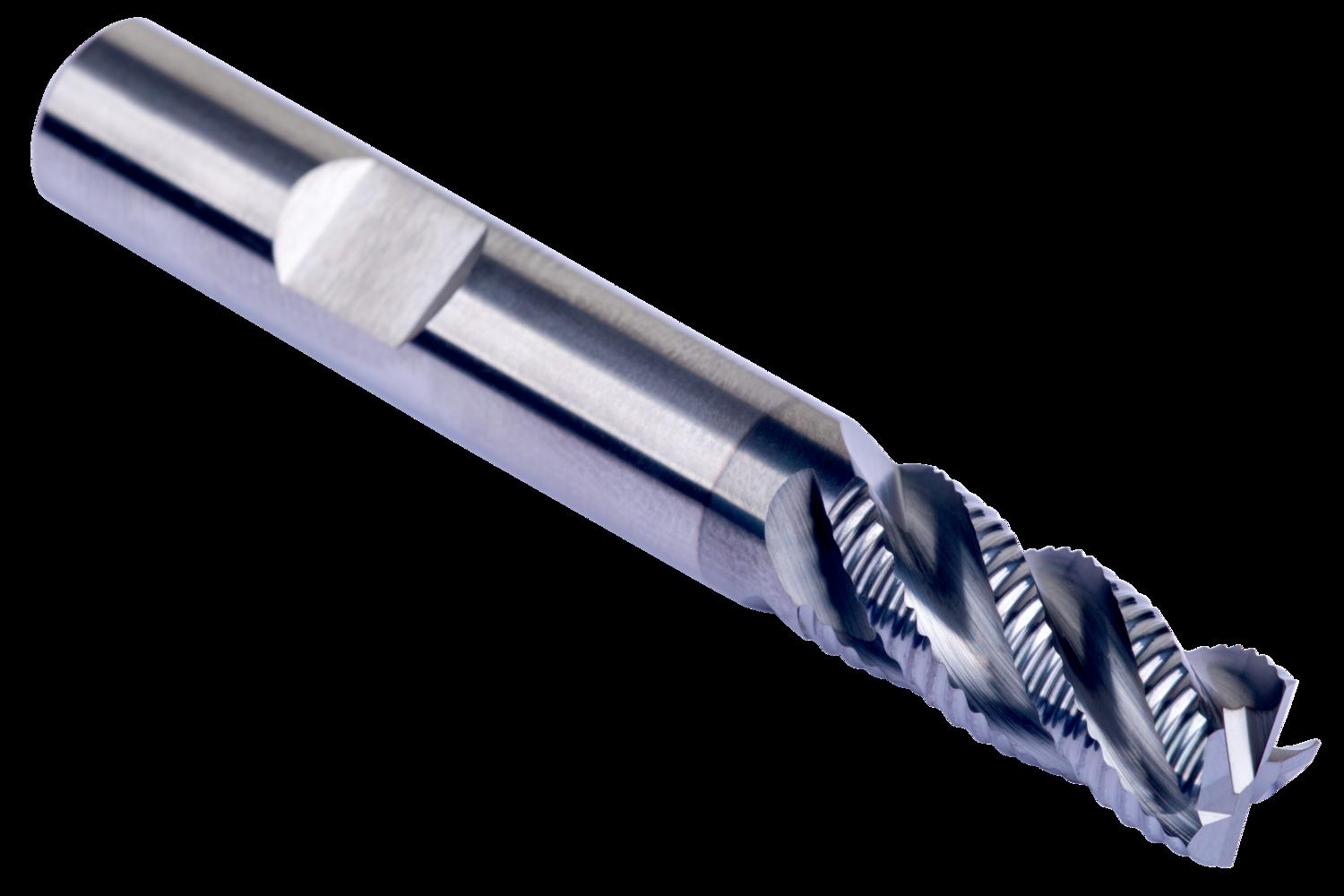

DORMER S765HB6.0 Carbide Cutters

Product Code: S765HB6.0

$128.03$116.39 Ex. GST

Product Code: S765HB6.0 SKU S765HB6.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series Roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6mm with 16mm length of cut, 50mm overall length and 0.1mm 45° chamfered corner edges, according to DORMER standard with a 6mm Weldon shank, solid carbide with AlCrN coating, 40° helix and 10° rake angle for shoulder milling and slot milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.1243 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950821
Product number (SAP): 86038187
Ordering code ANSI: S765HB6.0
Gross weight – grams: 23.8
Cutting diameter – millimeter (DC): 6 mm
Corner chamfer width – millimeter (CHW): 0.1 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
ISO: S765HB6.0

Brand

DORMER
