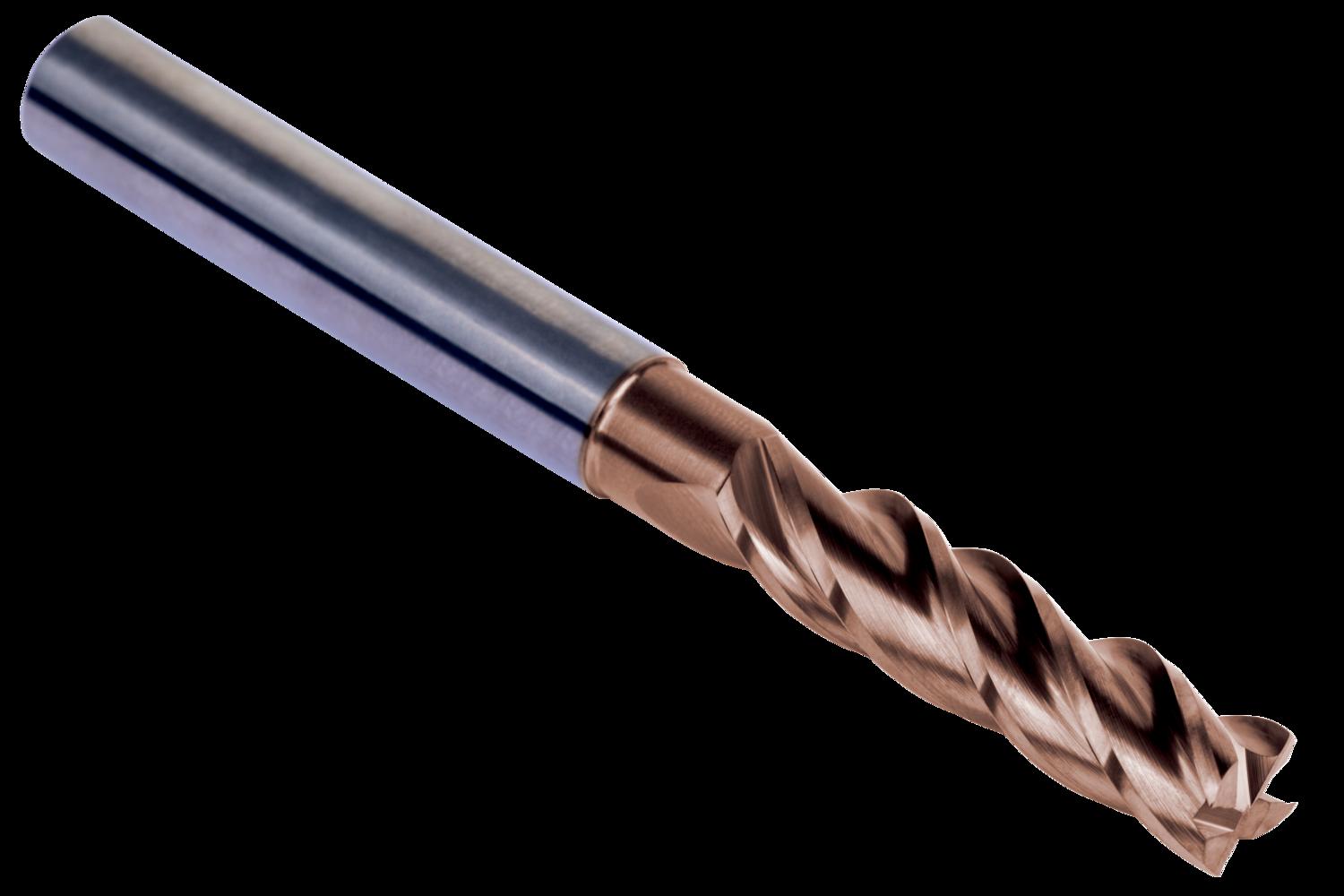

DORMER S76812.0 Carbide Cutters

Product Code: S76812.0

$344.43$313.12 Ex. GST

Product Code: S76812.0 SKU S76812.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Long series End mill with 4 flutes, diameter 12mm with 45mm length of cut, 100mm overall length, 55mm reach with neck relief and 0.3mm corner radii, according to DORMER standard with a 12mm plain shank, solid carbide with TiSiN coating, unequal helix and 10° rake angle for shoulder milling and plunging in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.3344 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950685
Product number (SAP): 86038173
Ordering code ANSI: S76812.0
Gross weight – grams: 135.1
Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 0.3 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 45 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 55 mm
Neck diameter – millimeter (DN): 11 mm
Radial rake angle (GAMF): 10
Flute helix unequal: Yes
With Neck: Yes
ISO: S76812.0

Brand

DORMER
