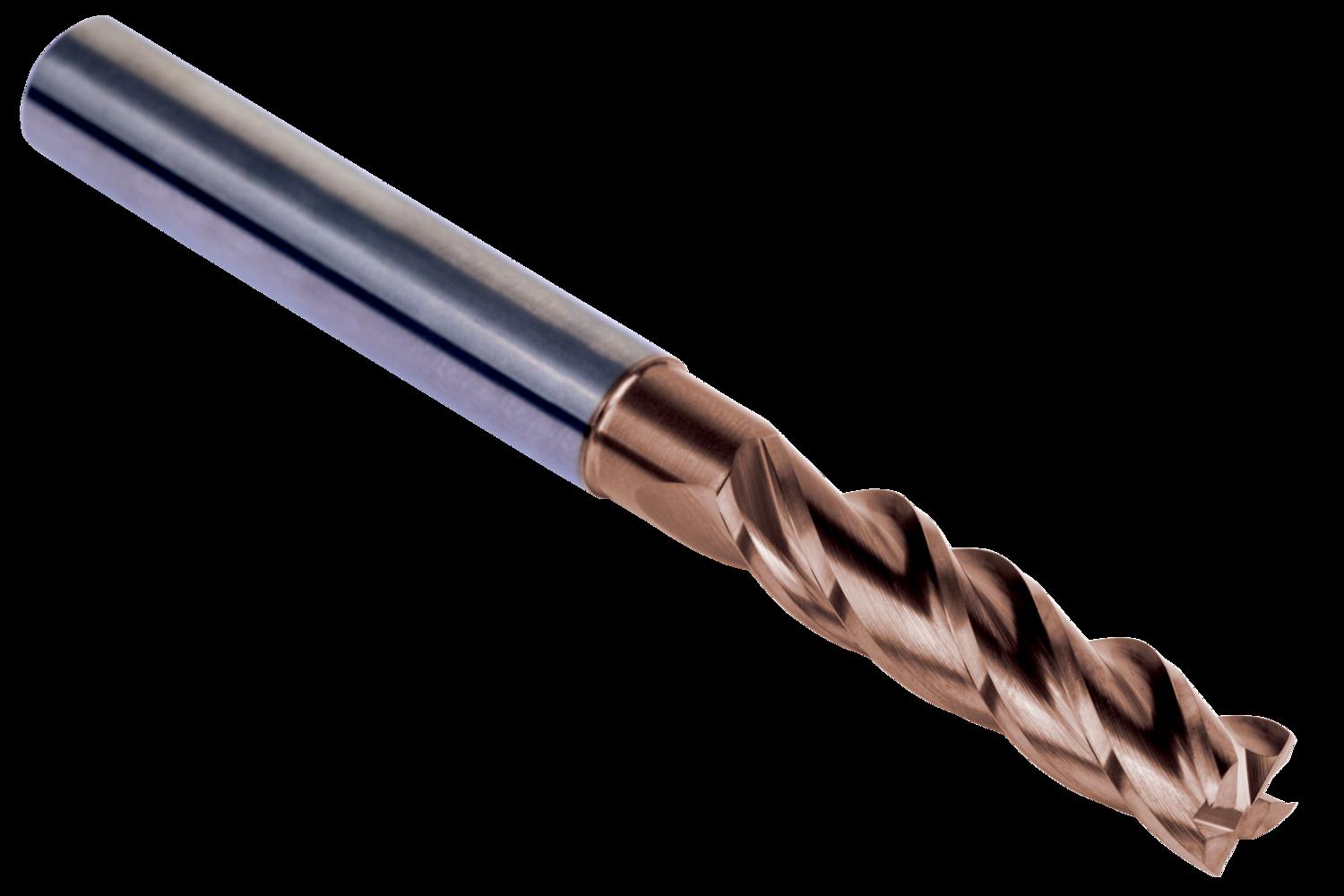

DORMER S7686.0 Carbide Cutters

Product Code: S7686.0

$134.83$122.57 Ex. GST

Product Code: S7686.0 SKU S7686.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Long series End mill with 4 flutes, diameter 6mm with 25mm length of cut, 75mm overall length, 32mm reach with neck relief and 0.1mm corner radii, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, unequal helix and 10° rake angle for shoulder milling and plunging in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.1309 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950654
Product number (SAP): 86038170
Ordering code ANSI: S7686.0
Gross weight – grams: 32.4
Cutting diameter – millimeter (DC): 6 mm
Corner radius – millimeter (RE): 0.1 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 32 mm
Neck diameter – millimeter (DN): 5.5 mm
Radial rake angle (GAMF): 10
Flute helix unequal: Yes
With Neck: Yes
ISO: S7686.0

Brand

DORMER
