DORMER S770HB10.0 Carbide Cutters

Product Code: S770HB10.0

$198.28$180.25 Ex. GST

Product Code: S770HB10.0 SKU S770HB10.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

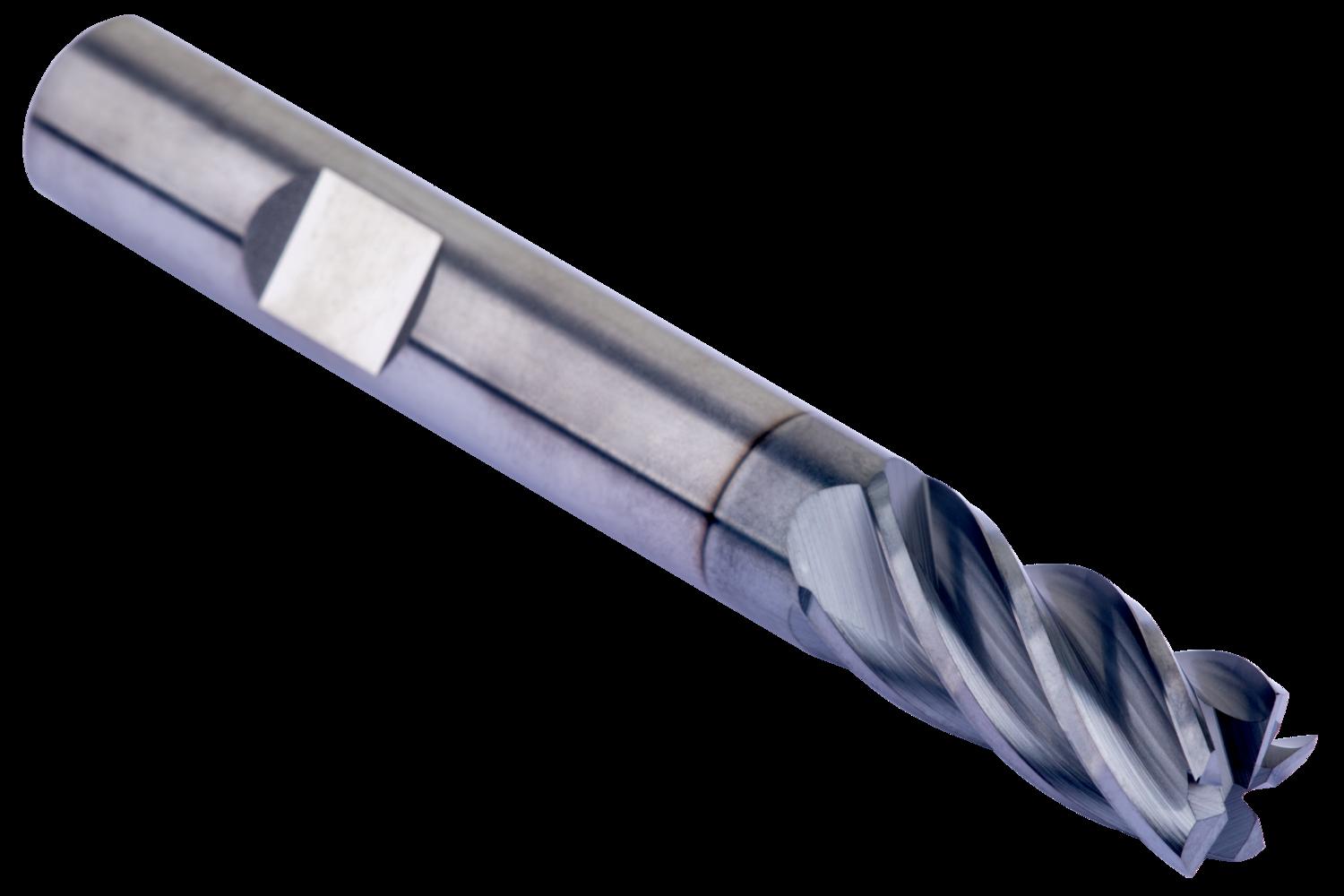

Short series Trochoidal end mill with 5 flutes, diameter 10mm with 22mm length of cut, 72mm overall length and 0.2mm corner radii, according to DORMER standard with a 10mm Weldon shank, solid carbide with AlCrN coating, unequal helix and 10° rake angle for shoulder milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.1925 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760951057
Product number (SAP): 86038147
Ordering code ANSI: S770HB10.0
Gross weight – grams: 74
Cutting diameter – millimeter (DC): 10 mm
Corner radius – millimeter (RE): 0.2 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 72 mm
Flute count (NOF): 5
Radial rake angle (GAMF): 10
Flute helix unequal: Yes
ISO: S770HB10.0

Brand

DORMER
