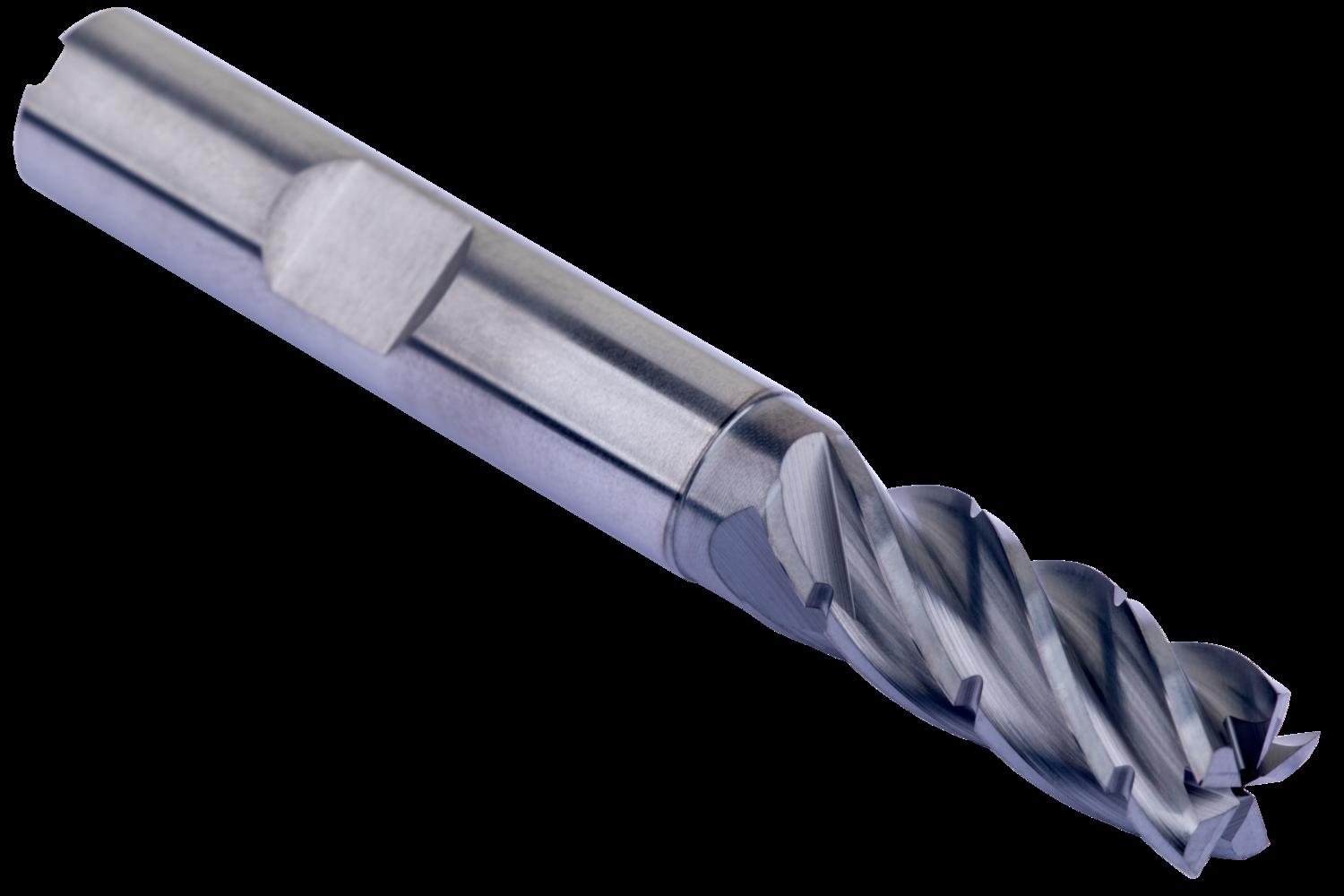

DORMER S771HB12.0 Carbide Cutters

Product Code: S771HB12.0

$407.88$370.80 Ex. GST

Product Code: S771HB12.0 SKU S771HB12.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series Trochoidal end mill with FS chip-divider and 5 flutes, diameter 12mm with 30mm length of cut, 83mm overall length, 38mm reach with neck relief and 0.2mm corner radii, according to DORMER standard with a 12mm Weldon shank, solid carbide with AlCrN coating, unequal helix and 10° rake angle for shoulder milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.396 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760951149
Product number (SAP): 86038156
Ordering code ANSI: S771HB12.0
Gross weight – grams: 115.9
Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 0.2 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 30 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 5
Usable Length – millimeter (LU): 38 mm
Neck diameter – millimeter (DN): 11.7 mm
Radial rake angle (GAMF): 10
Flute helix unequal: Yes
With Neck: Yes
ISO: S771HB12.0

Brand

DORMER
