DORMER S772HB12.0 Carbide Cutters

Product Code: S772HB12.0

$299.11$271.92 Ex. GST

Product Code: S772HB12.0 SKU S772HB12.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

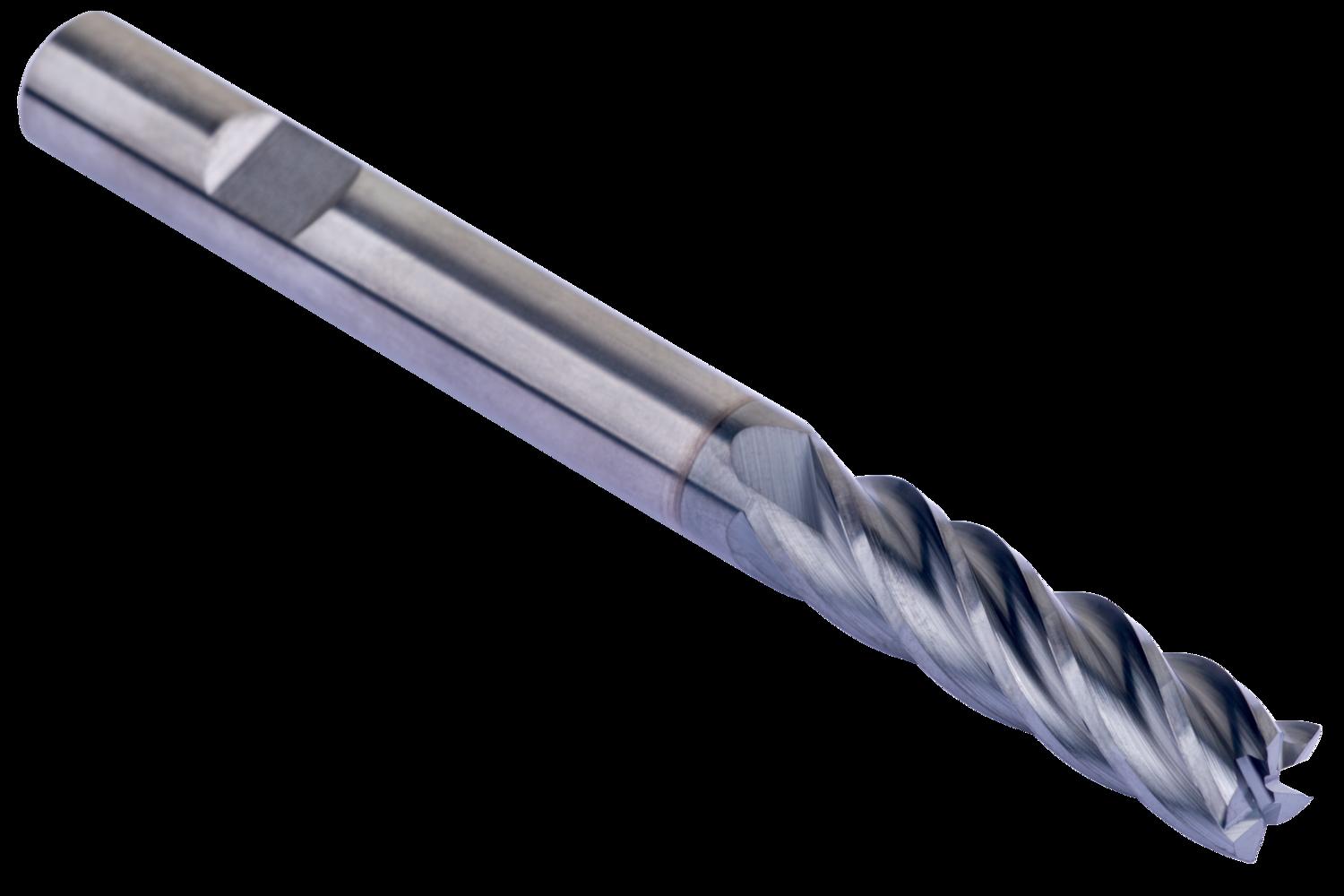

Long series Trochoidal end mill with 5 flutes, diameter 12mm with 45mm length of cut, 100mm overall length and 0.3mm corner radii, according to DORMER standard with a 12mm Weldon shank, solid carbide with AlCrN coating, unequal helix and 10° rake angle for shoulder milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.2904 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760951101
Product number (SAP): 86038152
Ordering code ANSI: S772HB12.0
Gross weight – grams: 142.7
Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 0.3 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 45 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 5
Radial rake angle (GAMF): 10
Flute helix unequal: Yes
ISO: S772HB12.0

Brand

DORMER
