DORMER S772HB16.0 Carbide Cutters

Product Code: S772HB16.0

$492.86$448.05 Ex. GST

Product Code: S772HB16.0 SKU S772HB16.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

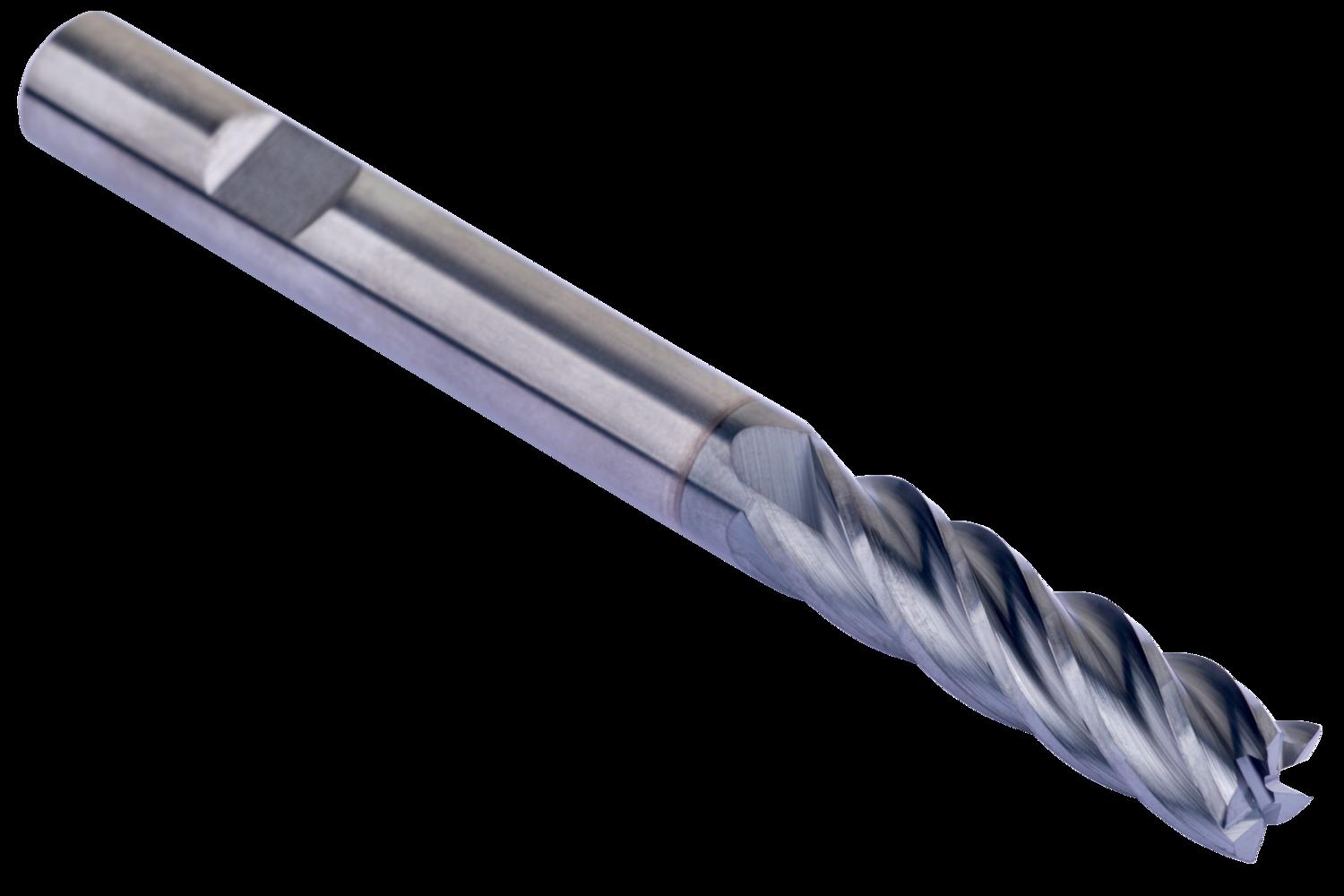

Long series Trochoidal end mill with 5 flutes, diameter 16mm with 55mm length of cut, 125mm overall length and 0.3mm corner radii, according to DORMER standard with a 16mm Weldon shank, solid carbide with AlCrN coating, unequal helix and 10° rake angle for shoulder milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.4785 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760951118
Product number (SAP): 86038153
Ordering code ANSI: S772HB16.0
Gross weight – grams: 311.1
Cutting diameter – millimeter (DC): 16 mm
Corner radius – millimeter (RE): 0.3 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 55 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 5
Radial rake angle (GAMF): 10
Flute helix unequal: Yes
ISO: S772HB16.0

Brand

DORMER
