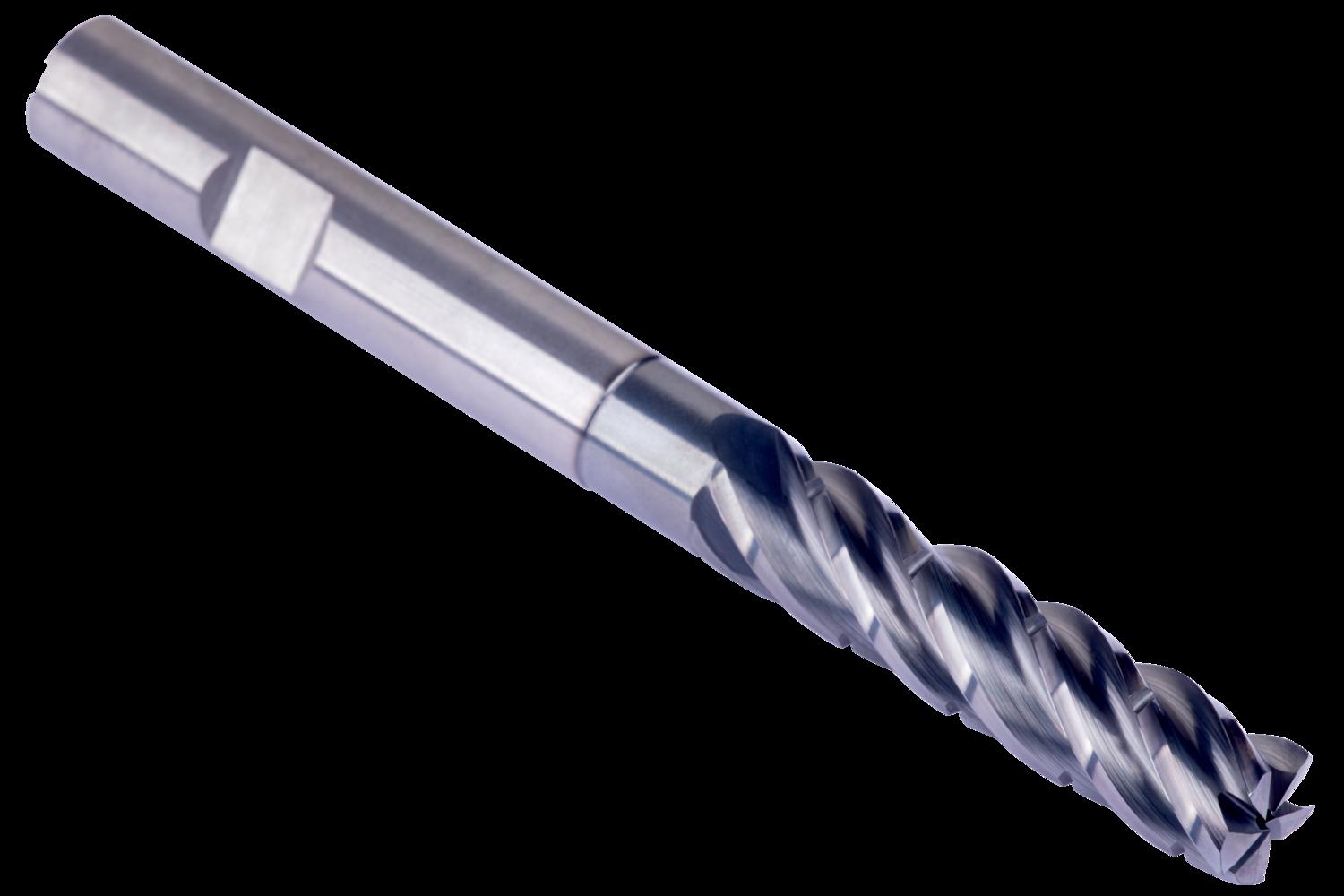

DORMER S773HB10.0 Carbide Cutters

Product Code: S773HB10.0

$324.04$294.58 Ex. GST

Product Code: S773HB10.0 SKU S773HB10.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Long series Trochoidal end mill with FS chip-divider and 5 flutes, diameter 10mm with 42mm length of cut, 100mm overall length, 52mm reach with neck relief and 0.2mm corner radii, according to DORMER standard with a 10mm Weldon shank, solid carbide with AlCrN coating, unequal helix and 10° rake angle for shoulder milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 0.3146 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760951170
Product number (SAP): 86038159
Ordering code ANSI: S773HB10.0
Gross weight – grams: 96.6
Cutting diameter – millimeter (DC): 10 mm
Corner radius – millimeter (RE): 0.2 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 42 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 5
Usable Length – millimeter (LU): 52 mm
Neck diameter – millimeter (DN): 9.7 mm
Radial rake angle (GAMF): 10
Flute helix unequal: Yes
With Neck: Yes
ISO: S773HB10.0

Brand

DORMER
