DORMER S773HB20.0 Carbide Cutters

Product Code: S773HB20.0

$1,138.67$1,035.15 Ex. GST

Product Code: S773HB20.0 SKU S773HB20.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

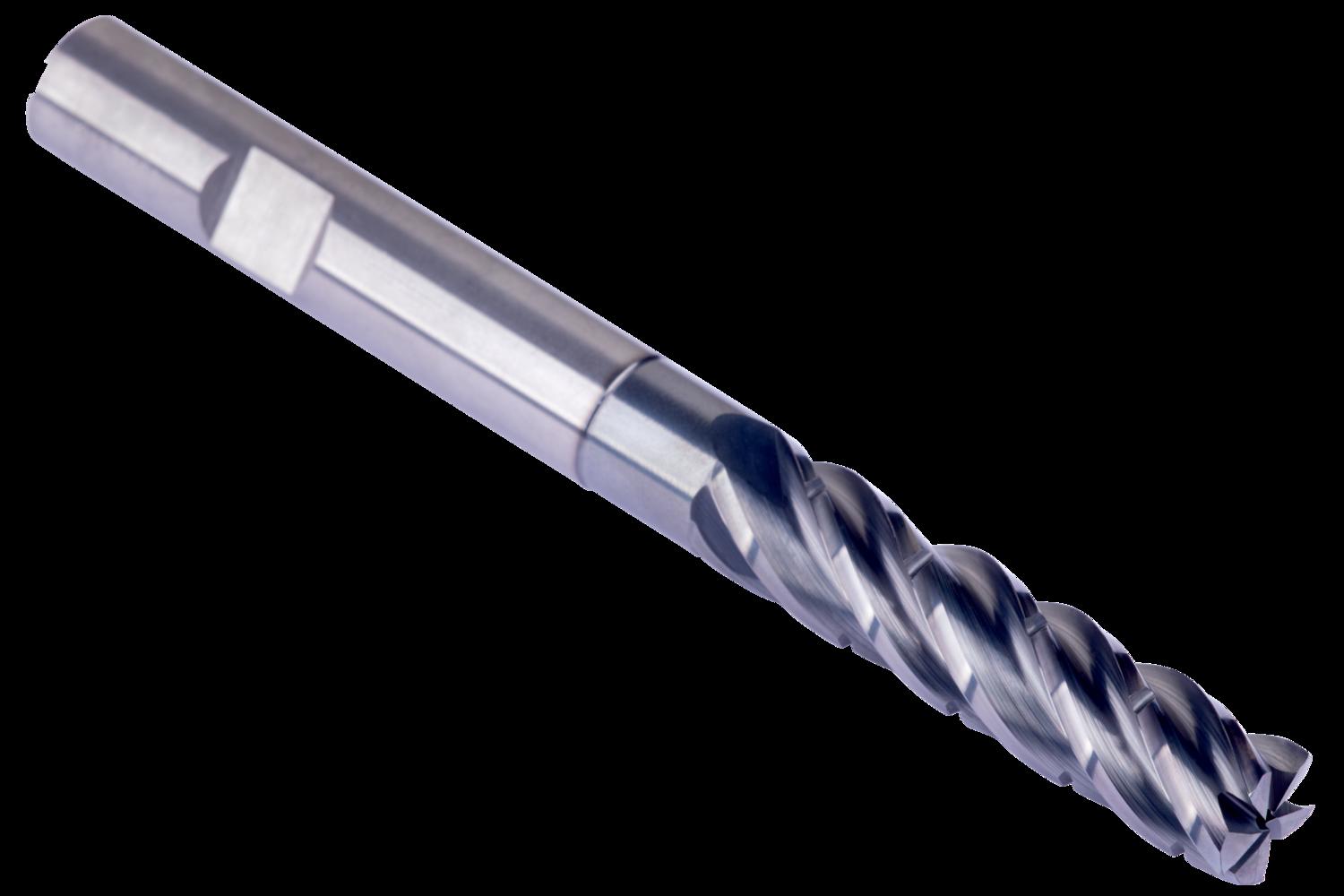

Long series Trochoidal end mill with FS chip-divider and 5 flutes, diameter 20mm with 67mm length of cut, 125mm overall length, 75mm reach with neck relief and 0.3mm corner radii, according to DORMER standard with a 20mm Weldon shank, solid carbide with AlCrN coating, unequal helix and 10° rake angle for shoulder milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron or high-temperature alloys

Additional information

Weight 1.1055 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760951200
Product number (SAP): 86038162
Ordering code ANSI: S773HB20.0
Gross weight – grams: 450.2
Cutting diameter – millimeter (DC): 20 mm
Corner radius – millimeter (RE): 0.3 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 67 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 5
Usable Length – millimeter (LU): 75 mm
Neck diameter – millimeter (DN): 19.7 mm
Radial rake angle (GAMF): 10
Flute helix unequal: Yes
With Neck: Yes
ISO: S773HB20.0

Brand

DORMER
