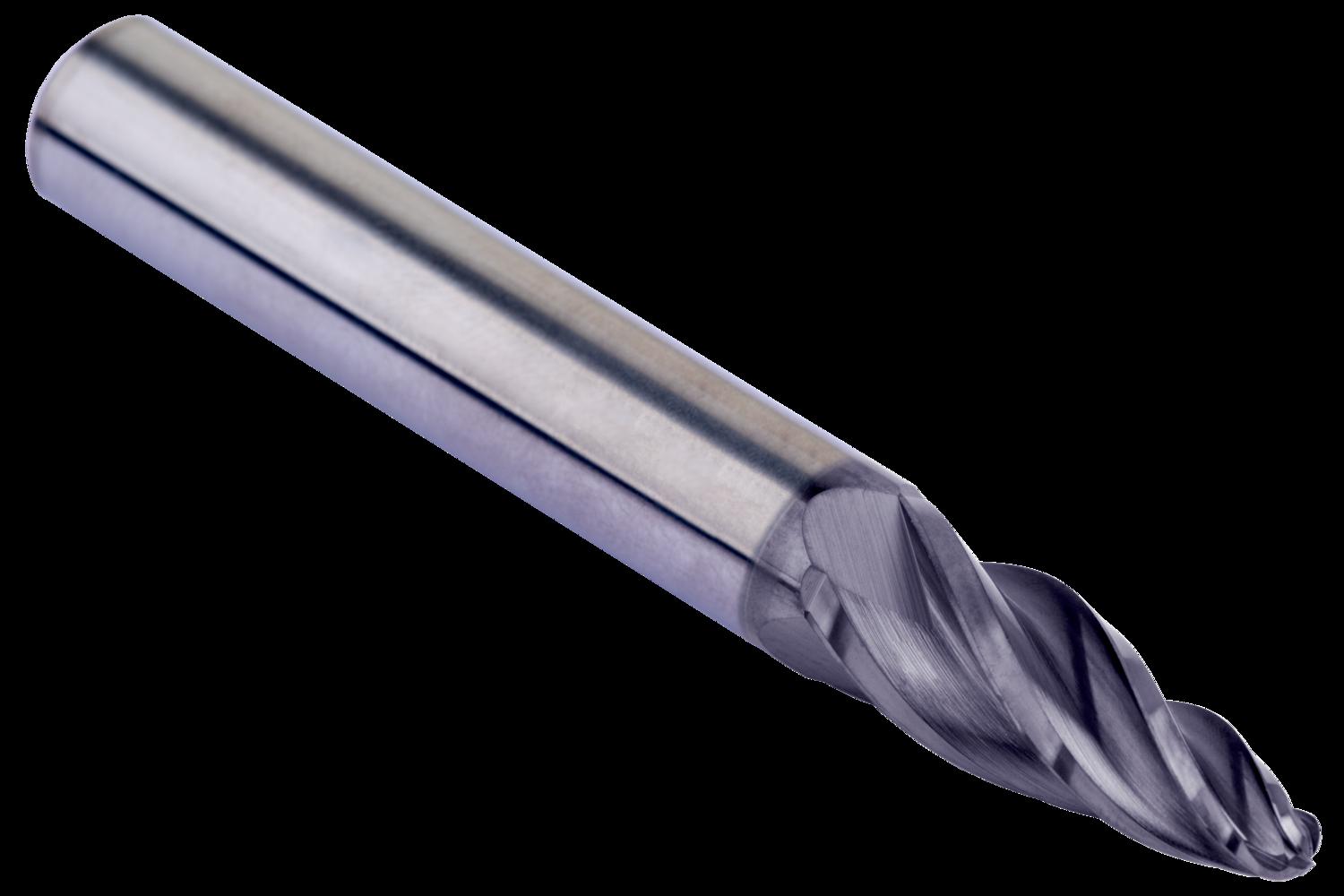

DORMER S79110.0 Carbide Cutters

Product Code: S79110.0

$324.04$294.58 Ex. GST

Product Code: S79110.0 SKU S79110.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length Barrel shape end mill with 4 flutes, diameter 10mm with 26mm length of cut, 75mm overall length, 2mm full profile radius and 85mm tangential radius, according to DORMER standard with a 10mm plain shank, solid carbide with AlCrN coating, 30° helix and 8° rake angle for copy milling and turn milling in steel and cast steel or cast-iron

Additional information

Weight 0.3146 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950609
Product number (SAP): 86038165
Ordering code ANSI: S79110.0
Gross weight – grams: 70.9
Cutting diameter – millimeter (DC): 10 mm
Corner radius – millimeter (RE): 2 mm
Profile radius – millimeters (PRFRAD2): 85 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 8
ISO: S79110.0

Brand

DORMER
