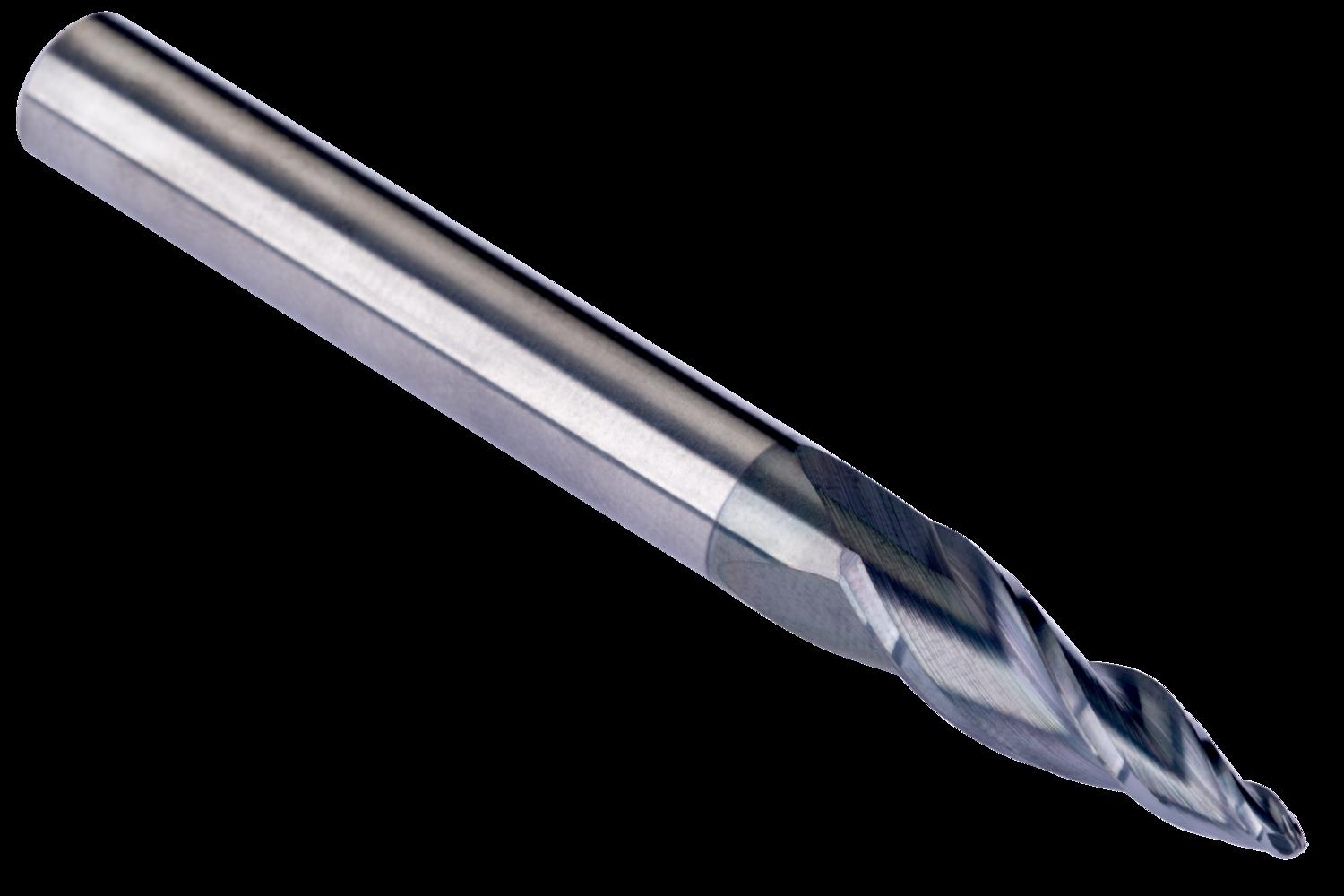

DORMER S7918.0 Carbide Cutters

Product Code: S7918.0

$223.20$202.91 Ex. GST

Product Code: S7918.0 SKU S7918.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length Barrel shape end mill with 3 flutes, diameter 8mm with 25mm length of cut, 75mm overall length, 1mm full profile radius and 90mm tangential radius, according to DORMER standard with a 8mm plain shank, solid carbide with AlCrN coating, 30° helix and 8° rake angle for copy milling and turn milling in steel and cast steel or cast-iron

Additional information

Weight 0.2167 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950593
Product number (SAP): 86038164
Ordering code ANSI: S7918.0
Gross weight – grams: 47.3
Cutting diameter – millimeter (DC): 8 mm
Corner radius – millimeter (RE): 1 mm
Profile radius – millimeters (PRFRAD2): 90 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 8
ISO: S7918.0

Brand

DORMER
