DORMER S802HA1.0 Carbide Cutters

Product Code: S802HA1.0

$71.95$65.41 Ex. GST

Product Code: S802HA1.0 SKU S802HA1.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

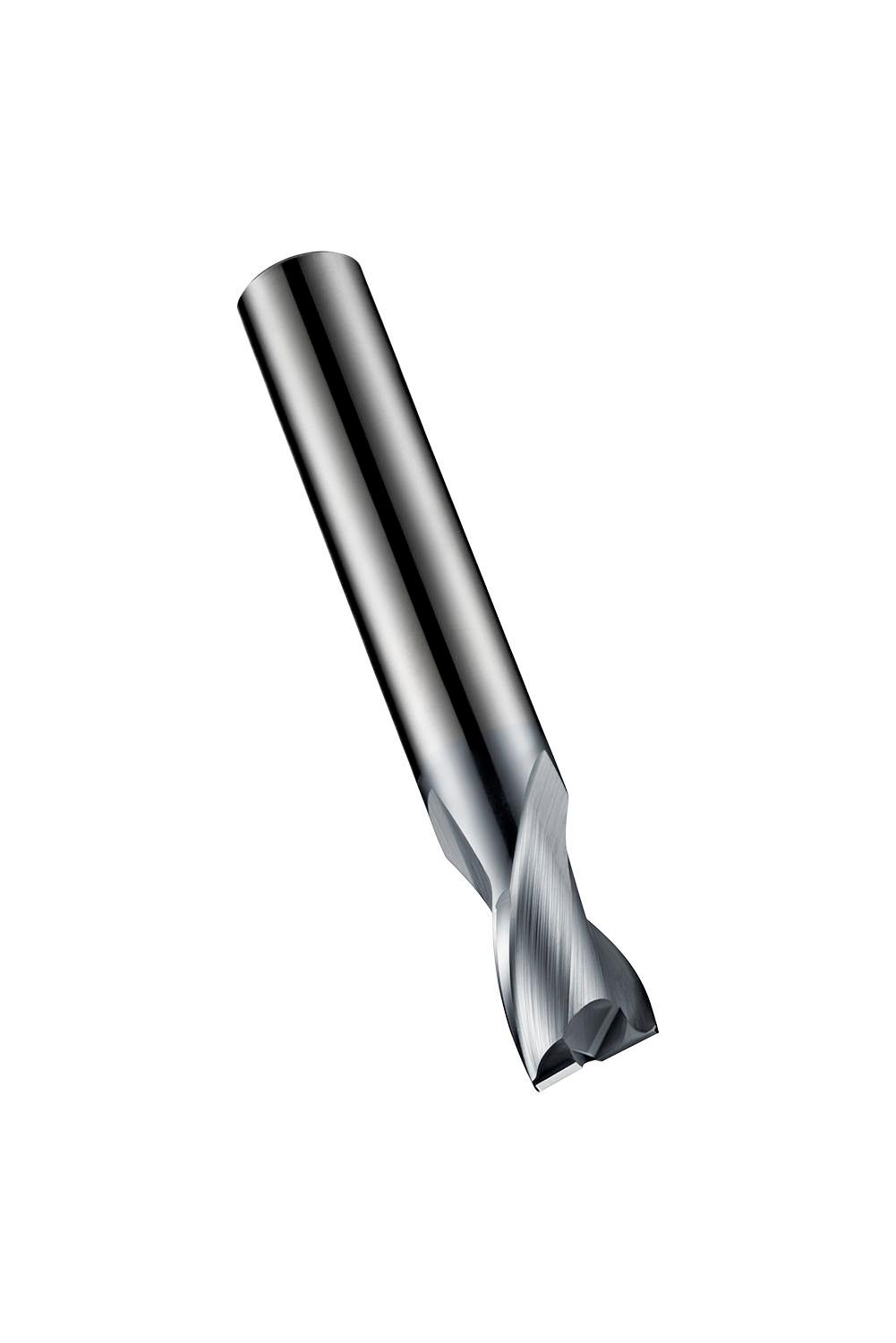

Extra short series slot drill with 2 flutes, diameter 1mm with 3mm length of cut and 38mm overall length, according to DIN 6527 K standard with a 3mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.0699 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760640364
Product number (SAP): 86020036
Ordering code ANSI: S802HA1.0
Gross weight – grams: 6.2
Cutting diameter – millimeter (DC): 1 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 3 mm
Overall length – millimeter (OAL): 38 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
ISO: S802HA1.0

Brand

DORMER
