DORMER S802HB3.0 Carbide Cutters

Product Code: S802HB3.0

$73.08$66.44 Ex. GST

Product Code: S802HB3.0 SKU S802HB3.0 Categories , ,
DORMER S802HB3.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

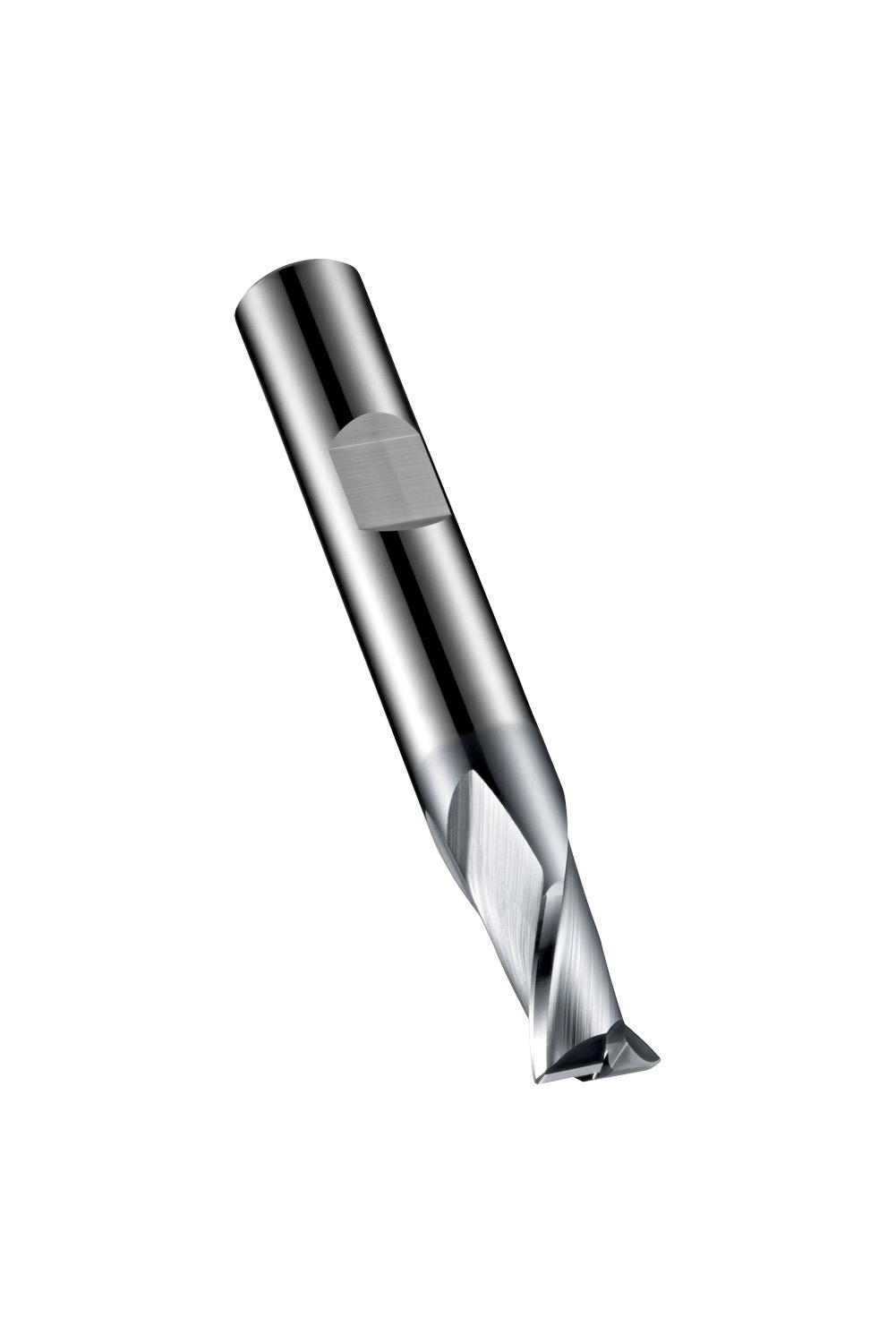

Extra short series slot drill with 2 flutes, diameter 3mm with 4mm length of cut, 50mm overall length and 0.08mm 45° chamfered corner edges, according to DIN 6527 K standard with a 6mm Weldon shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.0709 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760640722
Product number (SAP): 86020083
Ordering code ANSI: S802HB3.0
Gross weight – grams: 19.6
Cutting diameter – millimeter (DC): 3 mm
Corner chamfer width – millimeter (CHW): 0.08 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 4 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
ISO: S802HB3.0

Brand

DORMER
