DORMER S802HB6.0 Carbide Cutters

Product Code: S802HB6.0

$81.02$73.65 Ex. GST

Product Code: S802HB6.0 SKU S802HB6.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

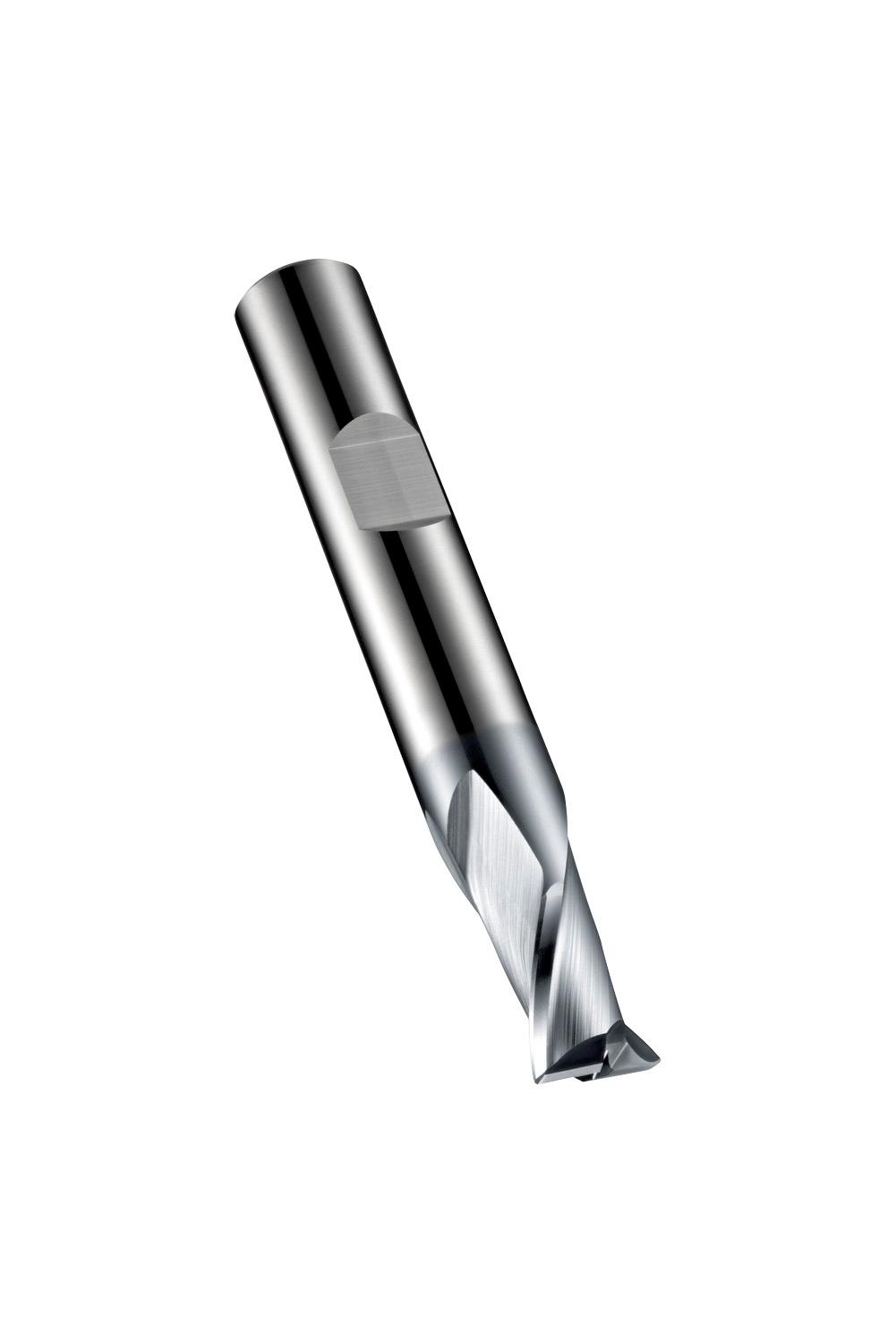

Extra short series slot drill with 2 flutes, diameter 6mm with 7mm length of cut, 54mm overall length and 0.13mm 45° chamfered corner edges, according to DIN 6527 K standard with a 6mm Weldon shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.0787 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760640807
Product number (SAP): 86020091
Ordering code ANSI: S802HB6.0
Gross weight – grams: 27.1
Cutting diameter – millimeter (DC): 6 mm
Corner chamfer width – millimeter (CHW): 0.13 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 54 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
ISO: S802HB6.0

Brand

DORMER
