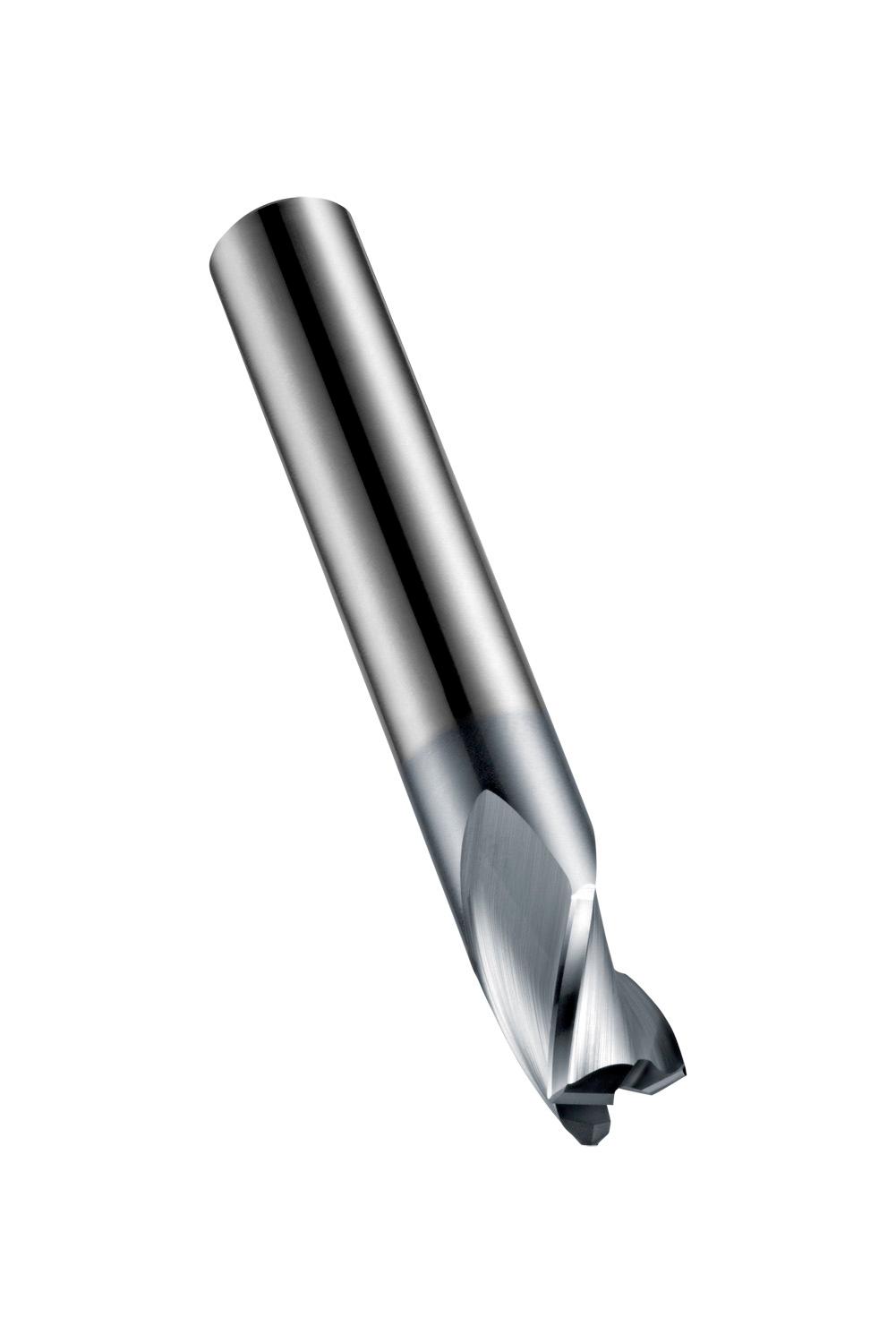

DORMER S803HA10.0 Carbide Cutters

Product Code: S803HA10.0

$146.16$132.87 Ex. GST

Product Code: S803HA10.0 SKU S803HA10.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extra short series slot drill with 3 flutes, diameter 10mm with 11mm length of cut, 66mm overall length and 0.2mm 45° chamfered corner edges, according to DIN 6527 K standard with a 10mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, plunging, slot milling and ramping in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.1419 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760641194
Product number (SAP): 86020101
Ordering code ANSI: S803HA10.0
Gross weight – grams: 74
Cutting diameter – millimeter (DC): 10 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 11 mm
Overall length – millimeter (OAL): 66 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 9
ISO: S803HA10.0

Brand

DORMER
