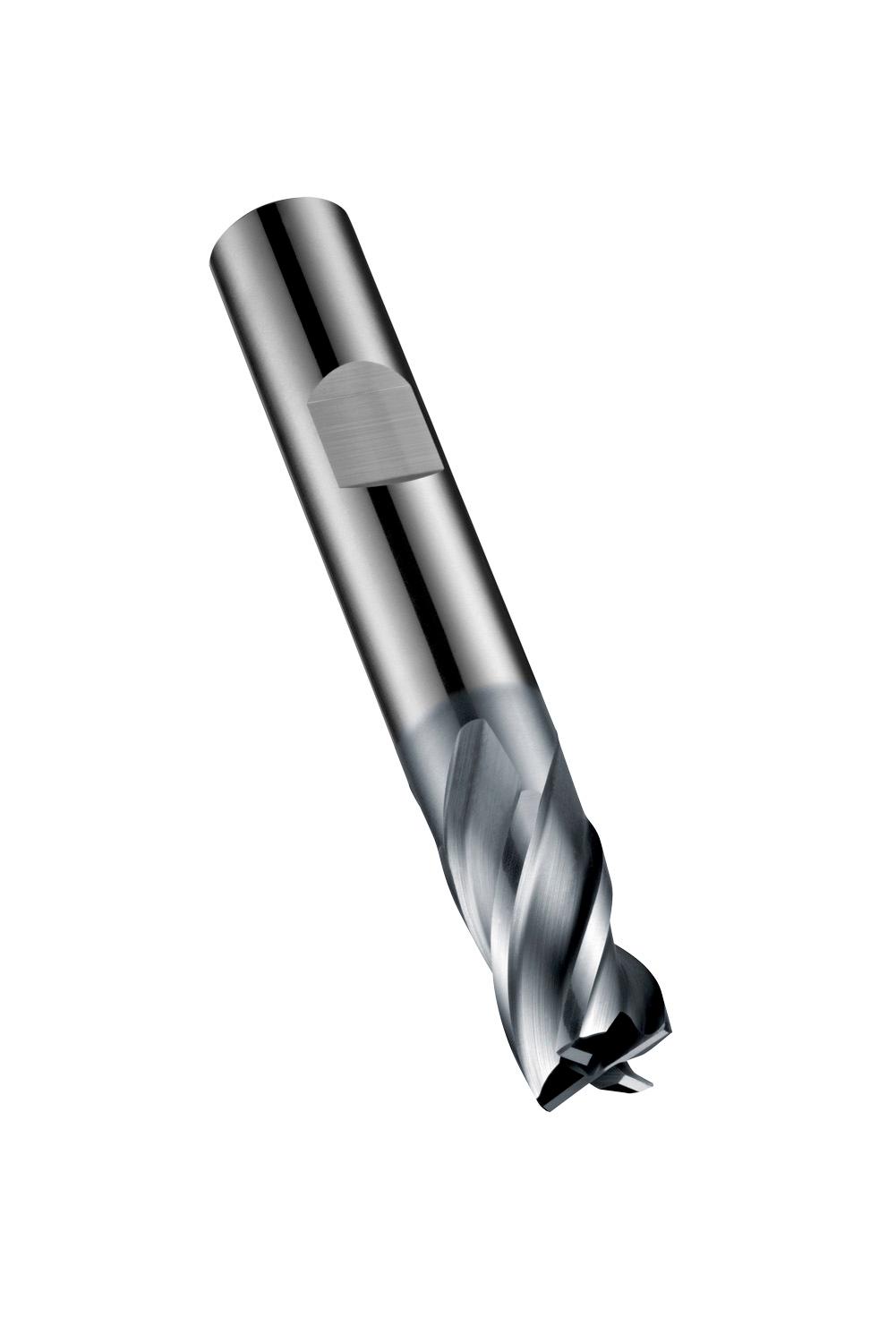

DORMER S804HB5.0 Carbide Cutters

Product Code: S804HB5.0

$91.21$82.92 Ex. GST

Product Code: S804HB5.0 SKU S804HB5.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extra short series end mill with 4 flutes, diameter 5mm with 9mm length of cut, 54mm overall length and 0.13mm 45° chamfered corner edges, according to DIN 6527 K standard with a 6mm Weldon shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and copper or copper alloys

Additional information

Weight 0.0886 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760641743
Product number (SAP): 86020179
Ordering code ANSI: S804HB5.0
Gross weight – grams: 26
Cutting diameter – millimeter (DC): 5 mm
Corner chamfer width – millimeter (CHW): 0.13 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 9 mm
Overall length – millimeter (OAL): 54 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 9
ISO: S804HB5.0

Brand

DORMER
