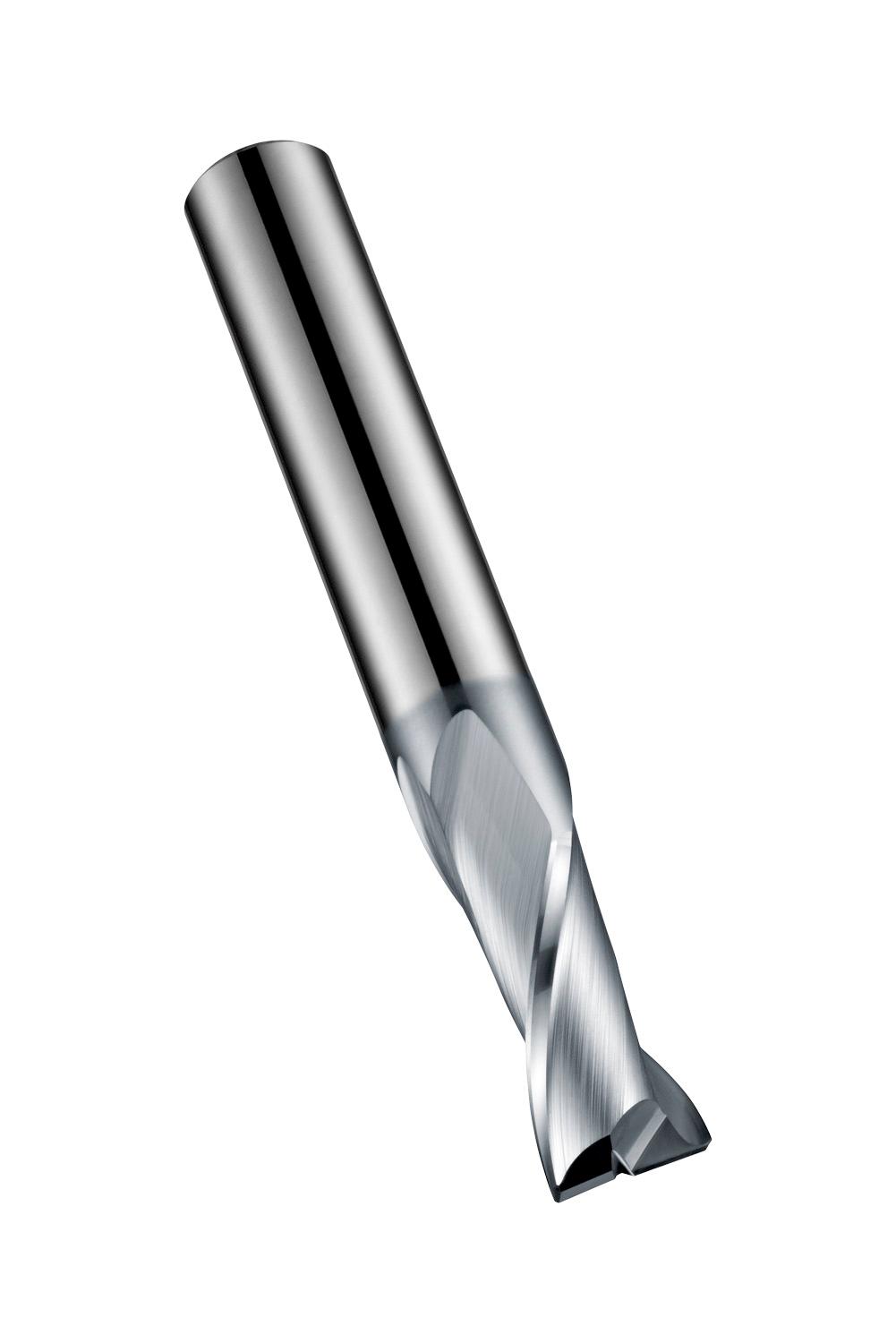

DORMER S812HA14.0 Carbide Cutters

Product Code: S812HA14.0

$252.66$229.69 Ex. GST

Product Code: S812HA14.0 SKU S812HA14.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series slot drill with 2 flutes, diameter 14mm with 22mm length of cut, 83mm overall length and 0.2mm 45° chamfered corner edges, according to DIN 6527 L standard with a 14mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.2453 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760641958
Product number (SAP): 86020184
Ordering code ANSI: S812HA14.0
Gross weight – grams: 164
Cutting diameter – millimeter (DC): 14 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 14 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
ISO: S812HA14.0

Brand

DORMER
