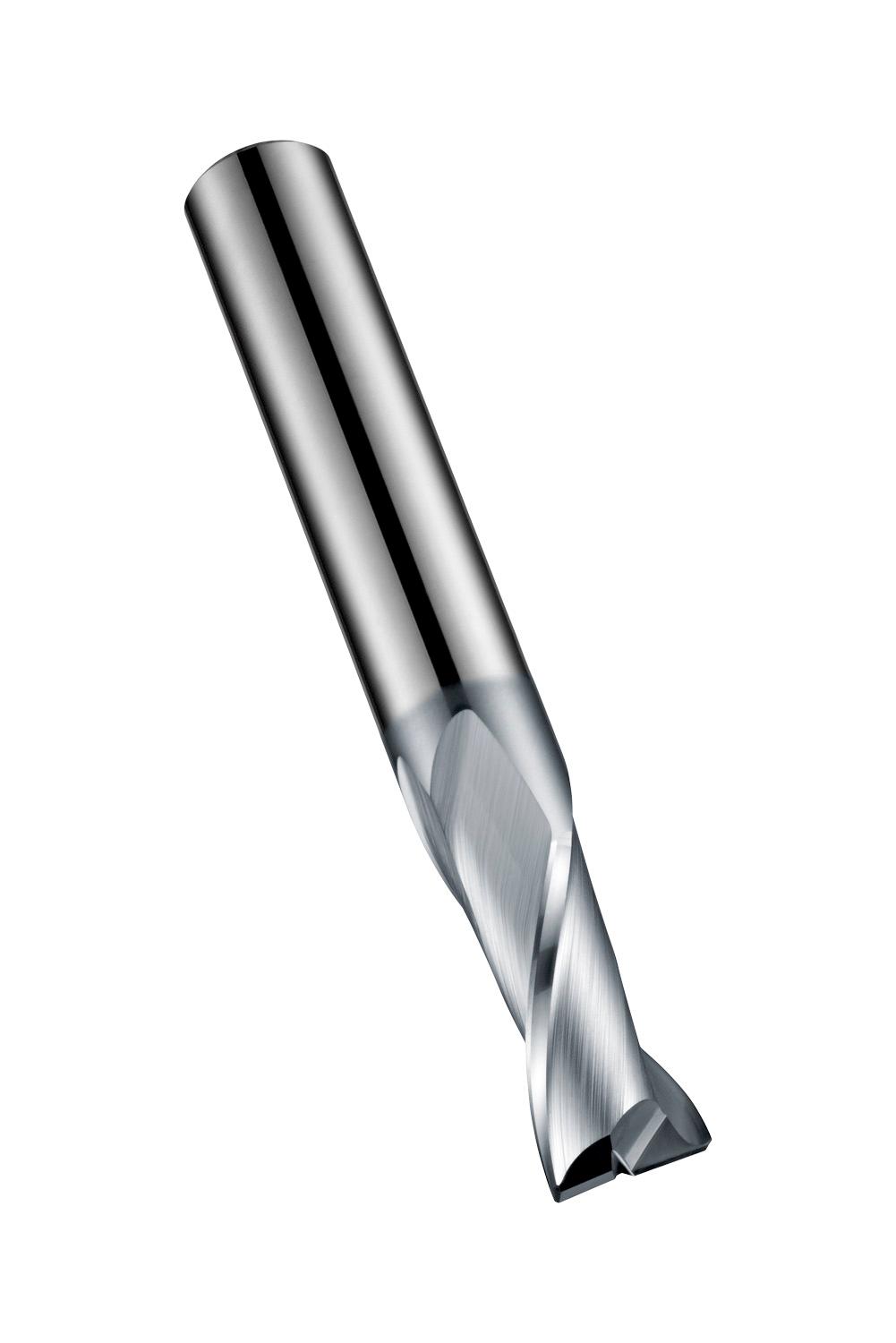

DORMER S812HA6.0 Carbide Cutters

Product Code: S812HA6.0

$78.75$71.59 Ex. GST

Product Code: S812HA6.0 SKU S812HA6.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series slot drill with 2 flutes, diameter 6mm with 10mm length of cut, 57mm overall length and 0.13mm 45° chamfered corner edges, according to DIN 6527 L standard with a 6mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.0765 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760641897
Product number (SAP): 86020195
Ordering code ANSI: S812HA6.0
Gross weight – grams: 28
Cutting diameter – millimeter (DC): 6 mm
Corner chamfer width – millimeter (CHW): 0.13 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 10 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
ISO: S812HA6.0

Brand

DORMER
