DORMER S812HA8.0 Carbide Cutters

Product Code: S812HA8.0

$110.47$100.43 Ex. GST

Product Code: S812HA8.0 SKU S812HA8.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

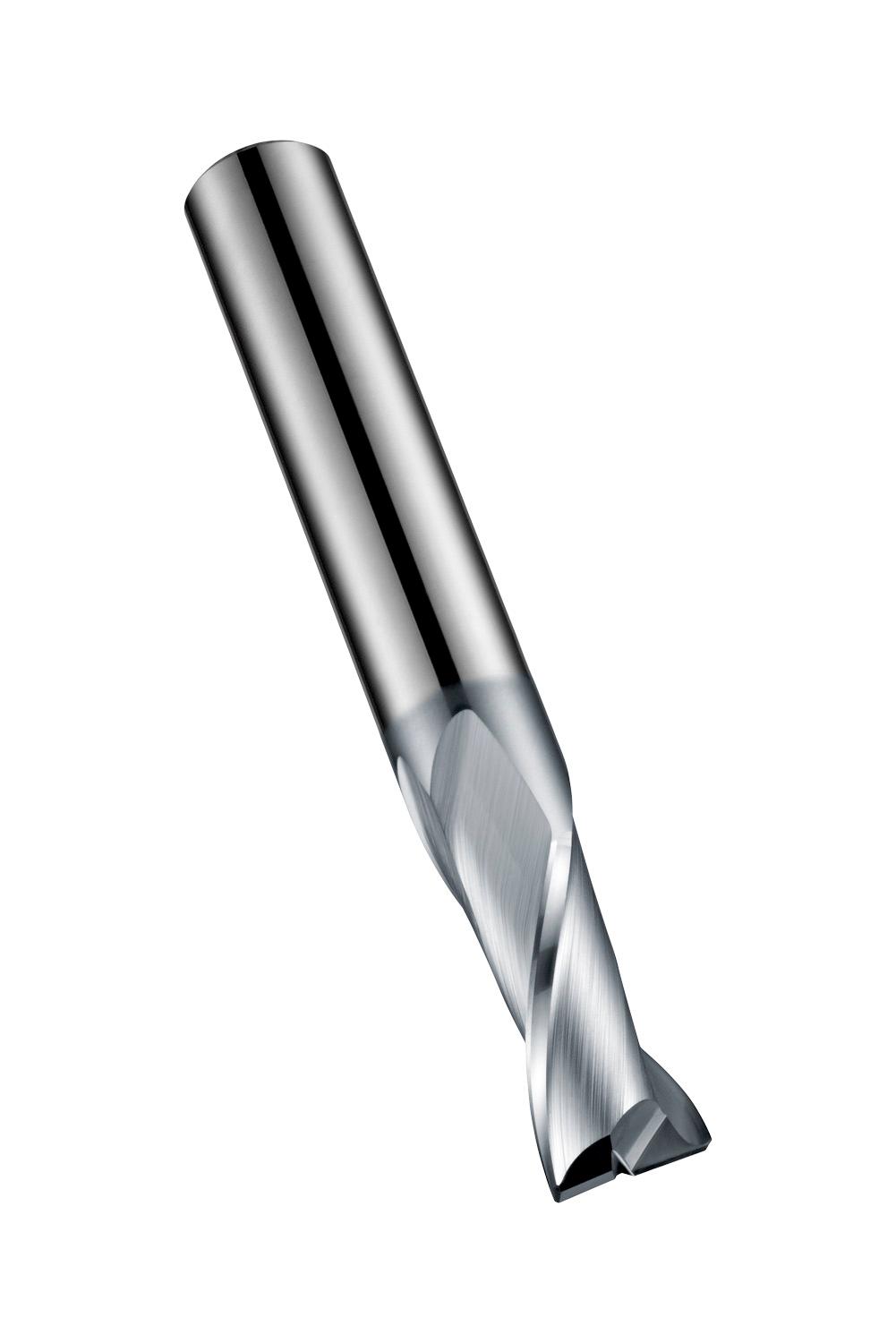

Short series slot drill with 2 flutes, diameter 8mm with 16mm length of cut, 63mm overall length and 0.2mm 45° chamfered corner edges, according to DIN 6527 L standard with a 8mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1073 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760641910
Product number (SAP): 86020197
Ordering code ANSI: S812HA8.0
Gross weight – grams: 46.2
Cutting diameter – millimeter (DC): 8 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 63 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
ISO: S812HA8.0

Brand

DORMER
