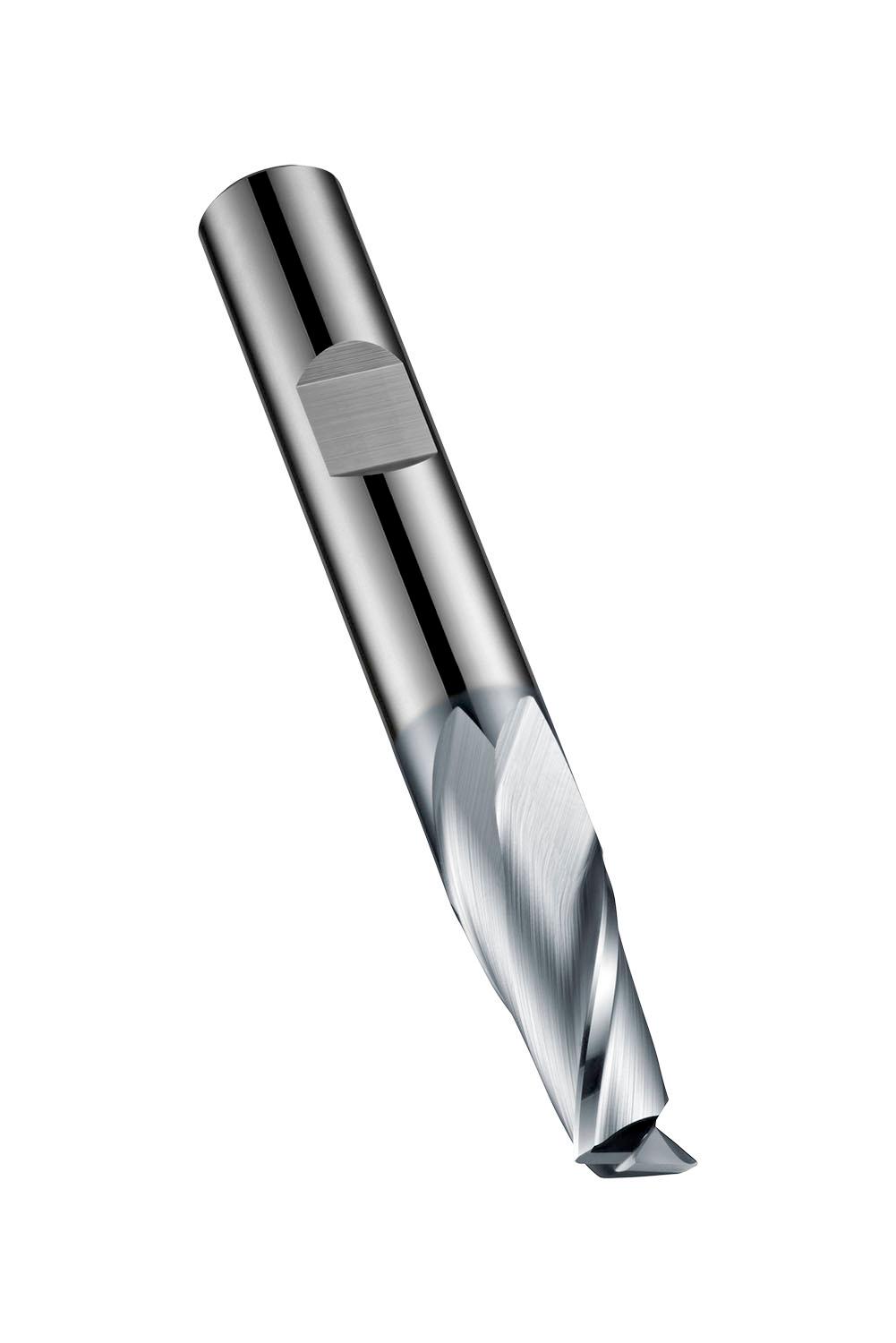

DORMER S812HB20.0 Carbide Cutters

Product Code: S812HB20.0

$538.18$489.25 Ex. GST

Product Code: S812HB20.0 SKU S812HB20.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series slot drill with 2 flutes, diameter 20mm with 32mm length of cut, 104mm overall length and 0.3mm 45° chamfered corner edges, according to DIN 6527 L standard with a 20mm Weldon shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.5225 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760642153
Product number (SAP): 86020206
Ordering code ANSI: S812HB20.0
Gross weight – grams: 392.8
Cutting diameter – millimeter (DC): 20 mm
Corner chamfer width – millimeter (CHW): 0.3 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 104 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
ISO: S812HB20.0

Brand

DORMER
