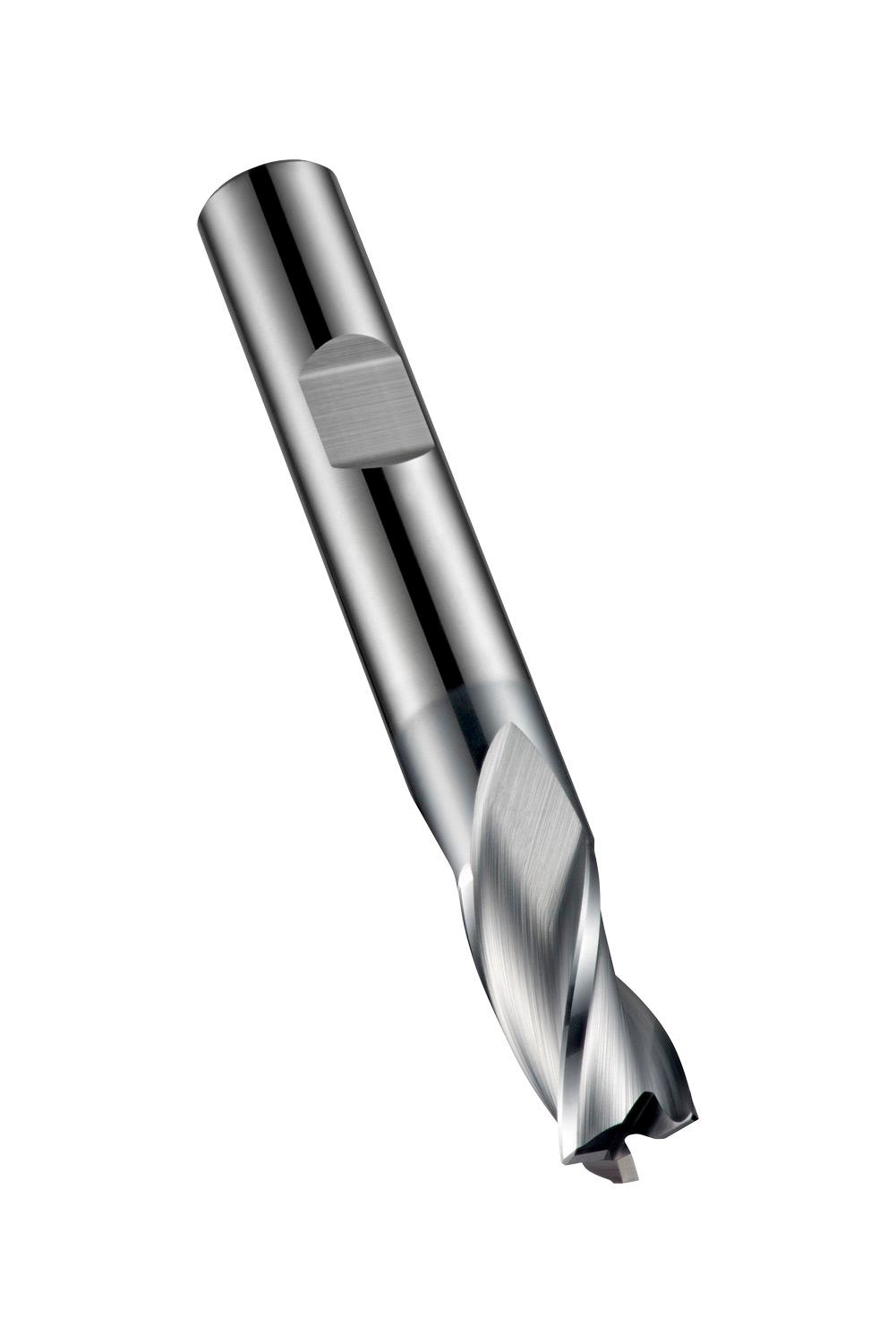

DORMER S813HB2.5 Carbide Cutters

Product Code: S813HB2.5

$80.44$73.13 Ex. GST

Product Code: S813HB2.5 SKU S813HB2.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series slot drill with 3 flutes, diameter 2.5mm with 7mm length of cut, 57mm overall length and 0.08mm 45° chamfered corner edges, according to DIN 6527 L standard with a 6mm Weldon shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, plunging, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.0781 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760642344
Product number (SAP): 86020239
Ordering code ANSI: S813HB2.5
Gross weight – grams: 26.1
Cutting diameter – millimeter (DC): 2.5 mm
Corner chamfer width – millimeter (CHW): 0.08 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 9
ISO: S813HB2.5

Brand

DORMER
